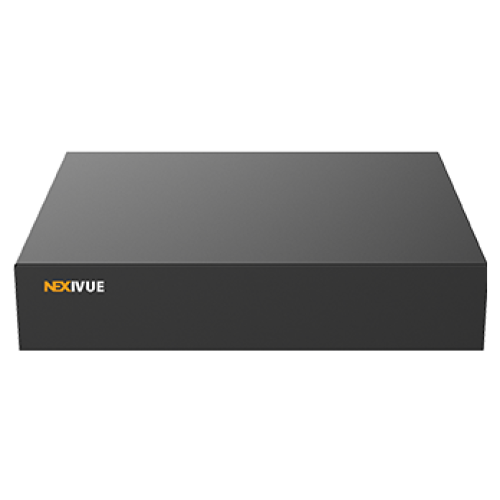

Nexivue 32 Channel Network Video Recorder 4K Support H2 Series 7A32C-H2

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹13,780.00

(Inclusive of all taxes)

Installation Required ₹700.00

32-channel NVR supporting up to 16MP IP cameras, NEXICODE H.265/H.264 video compression, 320 Mbps incoming and 160 Mbps outgoing bandwidth, and 2 SATA ports with up to 10TB storage capacity for high-performance surveillance recording.

SKU: 7A32C-H2

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2Years Product Warranty

Description

Operating System	Embedded LINUX
IP Camera Input	32 Channels
Video Input	32 Channel (16MP/ 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 1280x1024/ 960p/ 720p/ D1/ CIF)
Resolution	16MP (7680 x 2160), 12MP (4000 x 3000), 8MP (3840 x 2160), 5MP (2592 x 1944), 4MP (2688 x 1520/ 2560 x 1440), 3MP (2048 x 1536),1080P (1920 x 1080), 960P (1280 x 960), 720P (1280 x 720), D1 (720 x 576/ 720 x 480)
Preview capability	1 CH 16MP@25fps, 2 CH 12MP@25fps, 4 CH 8MP@25fps, 5 CH 6MP@25fps, 6 CH 5MP@25fps, 8 CH 4MP@25fps, 10 CH 3MP@25fps, 16 CH 1080p@25fps, 32 CH 720p/D1@25fps
Playback Capability	1 CH 16MP@25fps, 2 CH 12MP@25fps, 4 CH 8MP@25fps, 5 CH 6MP@25fps, 6 CH 5MP@25fps, 8 CH 4MP@25fps, 10 CH 3MP@25fps, 16 CH 1080p/ 720p/ D1@25fps
Bandwidth Rate	320 Mbps for Input, 320 Mbps for Recording and 160 Mbps for Transmission
Video Output	1 HDMI: 4K (3840 x 2160), 2K (2560 x 1440), (1920 x 1080), (1280 x 1024), (1280 x 720), (1024 x 768) 1 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video Display Split	32 Channel/ 25 Channel/ 17 Channel/ 16 Channel/ 13 Channel/ 10 Channel/ 9 Channel/ 8 Channel/ 6 Channel/ 4 Channel/ 2 Channel/ 1Channel
Record Mode	Manual/ Normal Record/ Motion Detection/ Alarm/ Smart Event
OSD	Camera Title, Time, Recording, Motion Detection, Event Alarm
Motion Detection	32 Channel, MD Zones: 396 (22 x 18)
Trigger Events	Recording, Email, FTP, Snapshot, Show Message, Pop-up Window, Alarm Output, Buzzer
Smart Event	Enables event-based recording and actions for efficient monitoring, Event like Loitering Detection, Line crossing Detection, Intrusion Detection, People Gathering.
Search Mode	ALL, Normal Video, Motion Detection, Alarm, Tag search, Smart Event, Picture, Log
Playback function	Play, Pause, Fast forward, Rewind, Previous frame, Next frame, Zoom, Clip, Audio
Digital Zoom	Support
Video Compression	NEXICODE, H.265, H.264
Audio Compression	G711U, G711A, AAC
Audio Input	1 Port RCA, Support 32 Channels IPC
Audio Output	1 Port RCA, HD output
Alarm Input	4 Channels
Alarm Output	1 Channel
Audio Bit Rate	64kbps
Protocols	IPv4/ IPv6/ TCP/ IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, NexiQloud, PPPOE, SNMP, Onvif (Profile S, Profile T)
Remote Operations	Support
OTA Upgrade	Support
Backup Mode	USB Device/ Network
Browser	Edge, Google Chrome, Firefox, Safari
USB Interface	Front panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0
Ethernet	1 x RJ45 (10M/100M/1000M self-adaptive Ethernet Interface)
Storage Capacity	2 SATA Hard Disk Interface (3.5" SATA), Up to 16TB capacity
Power Consumption	DC12V/4A ?15W (Without Hard Disk)
Operating Temperature	-10°C?50°C
Operating Humidity	10%?90%(Humidity)
Dimensions	380mm x 316mm x 51mm
Weight	1710g (Without HDD)
