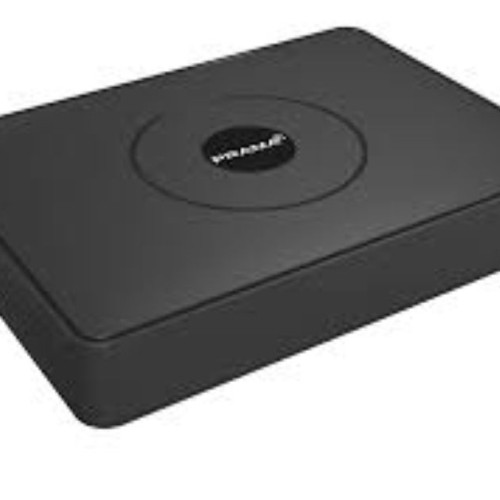

PT-DR1A16G-K1 HD-TVI DVR Series

Recording & Compression

Video Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding Resolution: 1080p lite / 720p / VGA / WD1 / 4CIF / CIF

Dual Stream: Supported

Stream Type: Video / Video & Audio

Video Bit Rate: 32 Kbps – 4 Mbps

????? Frame Rate

Main Stream

1080p access:

1080p lite / 720p lite / WD1 / 4CIF / VGA @ 15 fps

CIF @ 25 fps (PAL) / 30 fps (NTSC)

720p access:

720p / WD1 / 4CIF / VGA @ 15 fps

SD access:

WD1 / 4CIF / VGA / CIF @ 25 fps (PAL) / 30 fps (NTSC)

Sub-Stream

1080p & 720p: CIF / QVGA @ 15 fps

Standard Definition: CIF / QVGA @ 25 fps (PAL) / 30 fps (NTSC)

???? Audio

Audio Compression: G.711u

Audio Bit Rate: 64 Kbps

Audio Input: 1-ch RCA

Audio Output: 1-ch RCA

Two-Way Audio: Supported (1-ch RCA)

???? Video Inputs

Analog Video Input: 16-ch (BNC, 75?)

IP Video Input: 2-ch (up to 18-ch total)

Supported IP Camera Resolution: Up to 5 MP

Supported IP Formats: H.265+ / H.265 / H.264+ / H.264

Supported Analog Formats:

HDTVI: 1080p / 720p

AHD: 1080p / 720p

HDCVI: 1080p / 720p

CVBS: PAL / NTSC

????? Video Output

HDMI & VGA Output: 1-ch

Max Resolution: 1920 × 1080 @ 60Hz

HDMI & VGA: Simultaneous output supported

?? Playback

Synchronous Playback: 16-channel

???? Network

Remote Users: Up to 128

Network Interface: 1 × RJ45 (10/100 Mbps)

Supported Protocols:
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

???? Storage & Ports

SATA: 1 × SATA

HDD Capacity: Up to 10 TB

USB Ports: 2 × USB 2.0 (Rear)

? Power & Environment

Power Supply: 12 V DC, 1.6 A

Power Consumption (without HDD): ? 7 W

Operating Temperature: -10°C to 55°C

Operating Humidity: 10% – 90%
