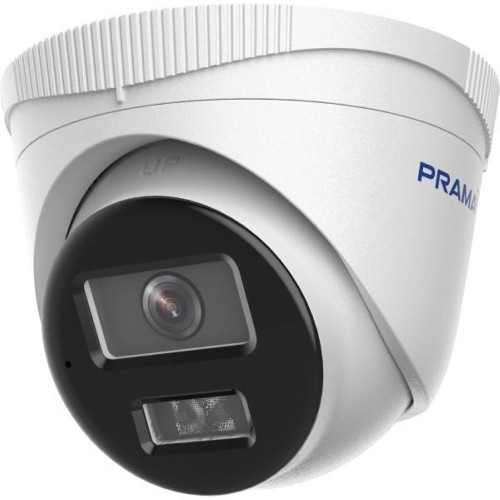

PT-NC123D3-N(D2) 2 MP Fixed Turret Network Camera (STQC CERTIFIED)

Image Sensor & Resolution

1/2.9" Progressive Scan CMOS

Max Resolution: 1920 × 1080 (Full HD)

Shutter Speed: 1/3 s to 1/100,000 s

Minimum Illumination:

Color: 0.005 Lux @ F1.6, AGC ON

B/W: 0 Lux with IR

Day/Night: IR Cut Filter

Angle Adjustment:

Pan: 0°–360°

Tilt: 0°–75°

Rotate: 0°–360°

???? Lens

Lens Type: Fixed focal lens (2.8mm or 4mm optional)

Field of View:

2.8 mm: 103° (H), 56° (V), 121° (D)

4 mm: 83° (H), 44° (V), 99° (D)

Lens Mount: M12

Aperture: F1.6

Iris: Fixed

???? DORI Distance

???? IR Illuminator

Supplement Light: IR

IR Range: Up to 30 m

Smart IR: Yes

Wavelength: 850 nm

???? Video

Main Stream:

50Hz: 25fps (1080p, 720p)

60Hz: 30fps (1080p, 720p)

Sub Stream:

50Hz: 25fps (640×480 / 640×360)

60Hz: 30fps (640×480 / 640×360)

Compression:

Main: H.265+ / H.265 / H.264+ / H.264

Sub: H.265 / H.264 / MJPEG

Bit Rate: 32 Kbps – 8 Mbps

ROI: 1 fixed region

???? Audio

Audio: Mono

Noise Filtering: Yes

Sampling Rate: 8 kHz / 16 kHz

Compression Formats: G.711u, G.711a, G.722.1, G.726, MP2L2, PCM, AAC-LC

Bit Rates: 16–160 Kbps (depending on codec)

???? Network

Security Features: Password protection, watermark, ONVIF authentication, security logs

Simultaneous Live View: Up to 6 channels

ONVIF: Profile S, Profile T

Supported Protocols: TCP/IP, DHCP, DNS, HTTP, RTSP, NTP, IPv4/IPv6, SMTP, QoS

Users Supported: Up to 32 (Admin, Operator, User)

Web Browser Support:

Live View: IE 10/11

Local Service: Chrome 57+, Firefox 52+

????? Image Features

WDR: Digital WDR (DWDR)

SNR: ? 52 dB

Day/Night Mode: Auto / Day / Night / Schedule

Enhancements: BLC, HLC, 3D DNR

Adjustable Settings: brightness, contrast, gain, sharpness, saturation, white balance

Privacy Mask: Up to 4 polygon masks

???? Interface

1 × RJ45 (10M/100M) Ethernet port

???? Event Features

Events: Motion detection (human/vehicle), video tampering, exception

Linkage Actions: Send email, trigger snapshot, notify monitoring center

?? General

Power:

12V DC ±25%, max 6W

PoE (802.3af, Class 3), max 7.2W

Material: Metal + Plastic

Dimensions: Ø112 mm × 82 mm

Weight: 340 g (560 g with package)

Operating Conditions: -30°C to 60°C, ?95% humidity

Protection: IP67
