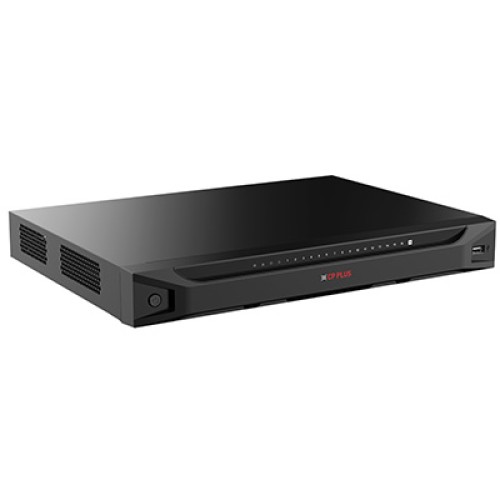

CP-UNR-4K4082-V2 8 Ch. 4K Network Video Recorder(STQC APPROVED)
₹8,500.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Dual-core embedded processor |
| IP Camera Input | 8 channel |
| Operating System | Embedded LINUX |
| Two-way Talk | 1 channel Input, 1 channel Output, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Compression | Instastream/H.265/Smart H.264+/H.264 |
| Video Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Decoding Capacity | 8 channels@1080P(30fps) |
| Network Bandwidth | 200 Mbps for access, 200 Mbps for storage and 96 Mbps for forwarding |
| Recording Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Video Display Split | 1/4/8/9 |
| Perimeter Protection by Camera Performance | 8 channels |
| AI Search Perimeter Protection | Search for pictures by channel, time and event type |
| SMD Plus by Camera | 8 channels |
| AI Search SMD | Search by target classification (human, vehicle) |
| Motion Detection | MD Zones: 396(22×18) |
| Video Loss | supports |
| Camera Blank | Supports |
| Alarm Input | 4 Channel |
| Alarm Output | 2 Channel |
| Audio Input | 1 channel, RCA connector |
| Audio Output | 1 channel, RCA connector |
| Hard Disk | 2 SATA III ports, up to 10TB Each |
| Smart Phone | iPhone, iPad, Android Phone |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer & Screen tips |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Disk Group | Supports |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
| Intelligent Alarm | Perimeter protection; SMD; people counting; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Interface Ports | 2 USB Ports (1 USB2.0, 1 USB3.0) |
| Max User Account | 128 users |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port (10/100M/1000Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, IGMP, ARP, SSL, ANR, RTP, QoS, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, SNMP, FTP, IP Search, ONVIF 2.4, SDK, CGI Conformant |
| Power Supply | DC12V/4A |
| Power Consumption | <6.9W (Without HDD) |
| Working Temp | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension | 375mm x 281.5mm x 56mm |
| Weight | 1.6kg (without HDD) |
