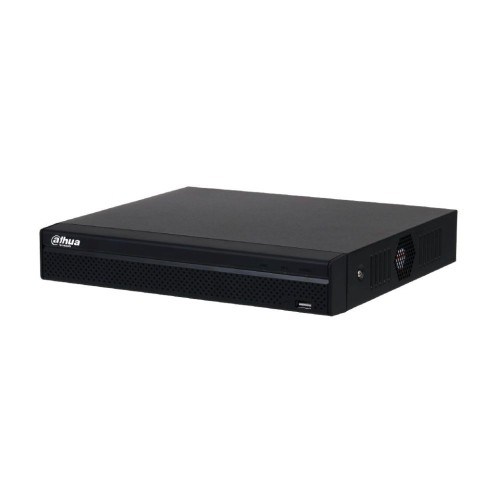

DHI-NVR2116HS-4KS3 16CH Compact 1U 1HDD Lite Network Video Recorder

Series Overview The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both cost effective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes. Functions SMD Plus With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. Perimeter Protection by Camera Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. ? Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. ? Max. decoding capability: 6 × 1080p@30 fps. ? Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth. ? Supports IP cameras with a resolution up to 12 MP. ? AI by Recorder supports 4-channel SMD Plus. ? AI by Camera supports perimeter protection and SMD Plus. ? Supports one-click arming and disarming. Technical Specification System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface AI Web, Local GUI AI by Recorder SMD Plus AI by Camera Perimeter Protection Perimeter protection; SMD Plus Perimeter Performance of AI by Camera (Number of Channels) SMD Plus 4 channels SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change SMD Plus by Camera Audio and Video 4 channels Access Channel 16 channels Network Bandwidth AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing Resolution 12 MP; 8 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; D1 Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps www.dahuasecurity.com NVR2000-4KS3 Series | DHI-NVR2116HS-4KS3 www.dahuasecurity.com Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Multi-screen Display 1/4/8/9/16 Third-party Camera Access ONVIF Compression Standard Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio Compression G.711a; G.711u; PCM; G726; Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration Mobile Phone Access iOS; Android Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK Browser Chrome; IE; Safari; Edge; Firefox Recording Playback Multi-channel Playback Up to 16 channels Record Mode General, motion detection; intelligent; alarm Backup Method USB device and network Playback Mode Instant playback; general playback; event playback; tag playback; smart playback Alarm General Alarm Motion detection; camera external alarm; PIR alarm Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline Intelligent Alarm Perimeter protection; SMD Plus Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour Port Audio Input 1-channel RCA Audio Output 1-channel RCA Alarm Input NA (2 channels are optional) Alarm Output NA (1-channel 12 V 1 A output is optional) HDD Interface 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) HDMI 1 VGA 1 Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45) General Power Supply 12 VDC, 1.5 A Power Consumption <10 W (without HDD) Net Weight 0.85 kg (1.87 lb) Gross Weight 1.39 kg (3.06 lb) Product Dimensions 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H) Packaging Dimensions 334.0 mm × 89.0 mm × 314.0 mm(13.15" × 3.50" × 12.36")(W × D × H) Operating Temperature –10 °C to +55 °C (14 °F to +131 °F) Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F) Operating Humidity 10%–93% (RH), non-condensing Installation Rack or desktop Certifications CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3 2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 Ordering Information Type Model Description NETWORK VIDEO RECORDER DHI-NVR2116HS-4KS3 16CH Compact 1U 1HDD Lite Network Video Recorder Dimensions (mm[inch]) NVR2000-4KS3 Series
