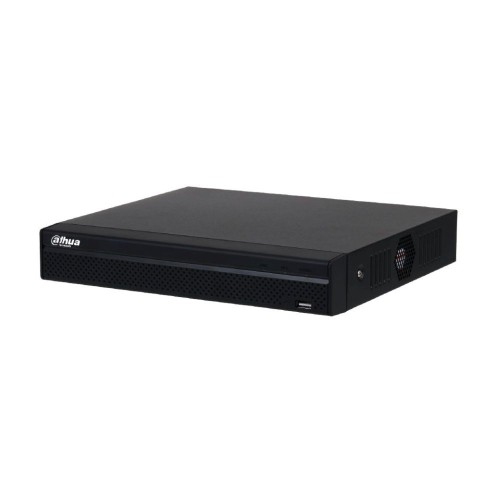

DHI-NVR1108HS-S3/H 8 Channel Compact 1U Lite H.265 Network Video Recorder

System Overview This network video recorder is a highly cost-effective product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, and remote management and control. Functions New User Interface Local and web interfaces adopt the new UI 4.0 style which is more consistent with users' habits. Functional modules are divided clearer and easier to understand. Decoding (Smart H.265+/Smart H.264+) Dahua smart encoding (H.265+/ H.264+) is the optimized implementation of (H.265/H.264) codec that uses a scene-adaptive encoding strategy, providing more efficiency in the encoding process and higher video quality, and reducing the cost of storage and transmission significantly. This NVR supports the corresponding decoding. · New 4.0 user interface · P2P remote surveillance, video play on mobile device · 4–ch@1080P(30FPS), self-adaptive decoding capability · Support for mainstream cameras of ONVIF and RTSP protocol · Smart H.265+/Smart H.264+/H.265/H.264 · VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P · Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches · DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System) Security Center Security Center provides a whole picture of device security and helps protect the NVR with security scan, attack defense, certificate management, audio and video encryption and security settings. Security warnings will be sent trough many ways such as email, message, voice prompts. Scene This NVR is suitable for places such as retail stores, families, courtyards and public areas. www.dahuasecurity.com www.dahuasecurity.com Dimensions (mm[inch]) Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. A3 A B C D E F 1 2 3 4 5 6 7 8 A B C D E F 1 2 3 4 5 6 7 8 DWG NO.: PART NO.: TITLE: APPD: STAD: CHKD: DATE: DATE: DATE: DATE: DRAW: 260.0 [10.24] 47.6 [1.87] 50.3 [1.98] 3.0 [0.12] 3.5 [0.14] 3.5 [0.14] 3.0 [0.12] 39.0 [1.54] 232.5 [9.15] 225.9 [8.89] .X 0.2 DHI-NVR1108HS-S3/H_???.XX 0.15 .XXX 0.05 ANG 0.5 UNIT'S:mm THESE DRAWINGS AND SPECIFICATION ARE THE PROPERTY OF ZHEJIANG DAHUA TECHNOLOGY Co., LTD. AND SHALL NOT BE REPRODUCED COPYIED OR USED IN ANY MANNER WITHOUT THE PRIOR WRITTEN CONSENT OF ZHEJIANG DAHUA TECHNOLOGY Co., LTD. SCALE:1:1 SHEET:1 OF 1 REVISIONS REV ZONE MARK DESCRIPTION DATE CHANGED NVR1000-S3/H Series | DHI-NVR1108HS-S3/H External Port HDD 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature USB 1 front USB 2.0 port, 1 rear USB 2.0 port HDMI 1 VGA 1 RCA Input 1 RCA Output 1 Alarm None Network 1 RJ–45 port (10/100 Mbps) General Parameter Power Supply DC12V, 1.5A Power Consumption Total output of NVR is ? 10W (without HDD) Net Weight 0.81 kg (1.79 lb) Gross weight 1.38 kg (3.04 lb) Product Dimensions 260 mm×225 mm×47.6 mm (W × L × H) Box Dimensions 87 mm×331 mm×312 mm (W × L × H) Operating Temperature-10°C to 45°C (+34°F to +113°F) Storage Temperature 0°C to 40°C (+32°F to +104°F) Operating Humidity 10%~93% Storage Humidity 30%~85% Operating Altitude 3000 m (9843 ft) Installation Desktop mounting Certification CE/FCC Technical Specification System Main Processor Industrial-grade embedded processor Operating System Embedded Linux Operation Interface Web/operating in local GUI Video Access Channel 8 channels Network Bandwidth 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. Resolution 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF Decoding Capability 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4 ch@1080P(30FPS)8–ch@720P(30FPS) Video Output 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P Multi-screen Display 1/4/8/9 Third Party Camera Access Onvif, RTSP Compression Video Smart H.265+/Smart H.264+/H.265/H.264 Audio PCM/G711A/G711U/G726/AAC Network Network Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P Mobile Phone Access iDMSS(iOS), gDMSS(Android) Access Standard ONVIF(profile T/profile S/profile G),CGI,SDK Browser Chrome, IE9 or above, Firefox Record Playback Multi-channel Playback Up to 8 channels playback Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording Storage Local HDD and network Backup USB device Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off Alarm General Alarm Motion detection, privacy masking, video loss, PIR alarm, IPC alarm Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly Alarm Linkage Video recording, snapshot, log, preset
