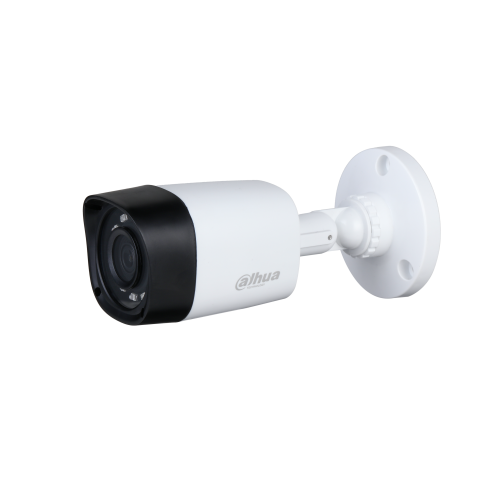

DH-HAC-HFW1400RP 4MP HDCVI IR Bullet Camera

System Overview Experience superior 4MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions. Functions 4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras. Long Distance Transmission HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700m for 4MP HD video via coaxial cable, and up to 300m via UTP cable.* *Actual results verified by real-scene testing in Dahua's test laboratory. Simplicity HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional ana log system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. Smart IR The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera. * The parameters and datasheets below can only be applied to 1400-S2 series. · Max 30fps@4MP · HD and SD output switchable · 3.6mm fixed lens (2.8mm, 6mm optional) · Max. IR length 20m, Smart IR · IP67, DC12V Lite Series Multi-formats 4Mp DC 12V 20m IR IP67 Temperature The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with not only XVRs but also most end users’ existing HD/SD DVRs. Multi-language OSD OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish. Protection The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning. www.dahuasecurity.com www.dahuasecurity.com Lite Series | DH-HAC-HFW1400R Technical Specification Camera Image Sensor 1/2.7" CMOS Effective Pixels 2560(H)×1440(V), 4MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 20m (66feet) IR On/Off Control Auto / Manual IR LEDs 12 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (2.8mm, 6mm Optional) Max Aperture F2.0 Angle of View H: 76.4° (97°/48.6°) V: 41.6° (52°/27.9°) Focus Control N/A Close Focus Distance 1400mm (800mm/2500mm) 55.1'' (31.5''/98.4'') DORI Distance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. DORI Definition Distance Detect 25px/m (8px/ft) 2.8mm: 56m(184ft) 3.6mm: 80m(262ft) 6mm: 120m(394ft) Observe 63px/m (19px/ft) 2.8mm: 22m(73ft) 3.6mm: 32m(105ft) 6mm: 48m(157ft) Recognize 125px/m (38px/ft) 2.8mm: 11m(37ft) 3.6mm: 16m(52ft) 6mm: 24m(79ft) Identify 250ppm (76px/ft) 2.8mm: 6m(18ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° Video Resolution 4MP (2560×1440) Frame Rate 25/30fps@4MP, 25/30fps@1080P Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Interface Audio Interface N/A Eelectrical Power Supply 12V DC ±30% Power Consumption Max 3.7W (12V DC, IR on) Environmental Operating Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Ingress Protection & Vandal Resistance IP67 Construction Casing Plastic Dimensions 154.3mm×69.8mm×69.8mm (6.07"×2.75"×2.75") Net Weight 0.15kg (0.33lb) Gross Weight 0.21kg (0.46lb) Lite Series | DH-HAC-HFW1400R Ordering Information Type 4MP Camera Accessories Part Number DH-HAC-HFW1400RP 2.8mm DH-HAC-HFW1400RP 3.6mm DH-HAC-HFW1400RP 6mm DH-HAC-HFW1400RN 2.8mm DH-HAC-HFW1400RN 3.6mm DH-HAC-HFW1400RN 6mm PFA134 PFA152-E PFM800-4K Description 4MP HDCVI IR Bullet Camera, PAL 4MP HDCVI IR Bullet Camera, NTSC Junction box (For use alone or with PFA152-E pole mount) Pole mount (For use with PFA134 junction box) Passive Video Balun PFM800B-4K PFM321 PFM320D-015 PFM300 PFM820 Accessories Passive Video Balun 12V 1A Power Adapter 12V 1.5A Power Adapter 12V 2A Power Adapter UTC Controller Optional: PFA134 Junction box PFM800B-4K Passive Video Balun PFM300 12V 2A Power Adapter Rev 001.001 PFA152-E Pole mount PFM321 12V 1A Power Adapter PFM820 UTC Controller PFM800-4K Passive Video Balun PFM320D-015 Power Adapter Junc on Mount PFA134 Pole Mount PFB134 + PFA152-E Dimensions (mm/inch)
