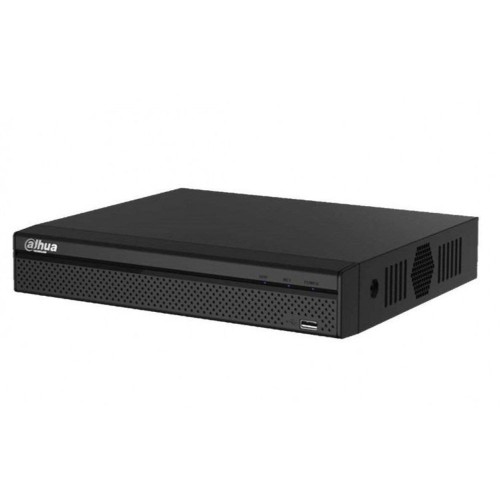

DH-XVR4B16 16 Channel Penta-brid 1080N/720P Compact 1U Digital Video Recorder

System Overview Dahua, as a technology leader, is always the first ever developed the shining new technology in the security industry ,and today we present Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs. It is ideal for a wide range of civil applications such as retail store, home protection and so on. Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance. Functions Smart H.265+ Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras. HDCVI/AHD/TVI/CVBS/IP Auto-detect The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. IPC Input Supported The DH-XVR4B16 suppports up to 6MP IPC input. Coaxial Audio/Upgrade/Alarm The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. Long Distance Transmission The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P. Smart Search This function helps you get more motion detect video during a short t ime through drawing a region when playback. It is very useful when an emergency occurs. Perfect Image Quality High performance chip provides perfect image quality with better color reproduction. P2P Monitor at anytime and anywhere. Easily and conveniently mange the device. www.dahuasecurity.com www.dahuasecurity.com Cooper Series | XVR4B04/08 Technical Specification System Main Processor Embedded Processor Operating System Embedded LINUX Video and Audio Analog Camera Input 16 Channel, BNC HDCVI Camera 1080P@25/30fps, 720P@25/30fps AHD Camera 1080P@25/30, 720P@25/30fps TVI Camera 1080P@25/30, 720P@25/30fps CVBS Camera PAL/NTSC IP Camera Input 16+2, each channel up to 6MP Audio In/Out 1/1, RCA Two-way Talk Reuse audio in/out, RCA Recording Video Compression H.265+/H.265/H.264+/H.264 Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF Record Rate Main Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/ QCIF(1~25/30fps) Sub stream: CIF/QCIF (1~7fps) Video Bit Rate 32Kbps ~ 4096Kbps Per Channel Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post record: 10 ~ 300 sec Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM Audio Sample Rate 8KHz, 16 bit Per Channel Audio Bit Rate 64Kbps Per Channel Display Interface 1 HDMI ,1 VGA Resolution 1920×1080, 1280×1024, 1280×720 Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Network Interface 1 RJ-45 Port (100M) Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 16.12, CGI Conformant Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis Alarm input N/A Relay Output N/A Playback and Backup Playback 1/4/9/16 Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second) Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Backup Mode USB Device/Network Storage Internal HDD 1 SATA Port, up to 6TB capacity eSATA N/A Auxiliary Interface USB 2 USB 2.0 RS232 N/A RS485 N/A Electrical Power Supply DC12V/2A Power Consumption (Without HDD) <10W Construction Dimensions Compact 1U, 260×236×48mm(10.2"×9.3"×1.9") Net Weight (without HDD) 0.80kg ( 1.76lb) (without HDD) Gross Weight 1.5kg (3.3lb) Installation Desktop installation Environmental Operating Conditions-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more Certifications Certifications FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
