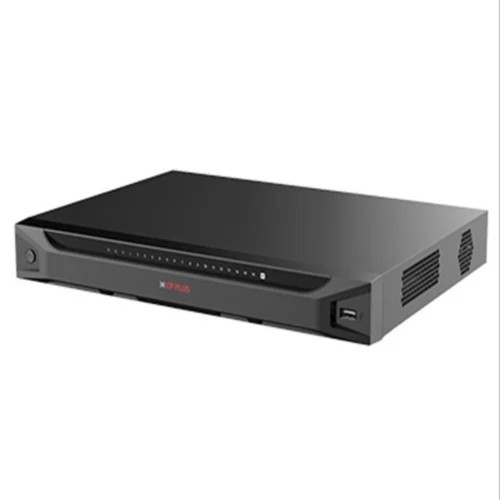

CP-UNR-4K5162-FI 16Ch. 4K AI Network Video Recorder
₹27,910.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| IP Camera Input | 16 channels |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| Video Output | 1 VGA:1920 × 1080, 1280 × 1024, 1280 × 720 1 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA |
| Video Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| Decoding Capability | AI Disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps AI enabled: 1 Channel 32 MP@25 fps, 1 Channel 24 MP@25 fps, 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps |
| AI by NVR | Face detection, Face recognition, Perimeter protection, IMD+ |
| AI by Camera | Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), Perimeter protection, IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| Resolution | 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 720p, 960p, D1, CIF, QCIF |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Video Display Split | Main screen: 1/4/8/9/16 , Sub screen: 1/4/8/9/16 |
| Perimeter Performance AI by NVR (Number of Channels) | 4 Channels, 10 IVS rules for each Channel |
| Perimeter Performance of AI by Camera (Number of Channels) | Human and vehicle detection on all channels, supporting up to 16 targets per second |
| Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 Channels (up to 12 face images/s each Channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 Channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and State can be added to each face image |
| Face Recognition Performance of AI by NVR (Number of Channels) | 1.16 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s 2.2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 Channels |
| IMD+ by NVR | 8 Channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change |
| IMD By Camera | Human and vehicle detection on all channels, supporting up to 32 targets per second |
| Metadata Performance of AI by Camera (Number of Channels) | 8 Channels |
| Human Attributes | Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella |
| Motor Vehicle Attributes | License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle Interior, Vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, Vehicle color, Number of persons, Helmet |
| ANPR by Camera (Number of Channels) | Human and vehicle detection on all channels, supporting up to 8 targets per second |
| License Plate Database Capacity | 1.Create up to 20,000 plate numbers, 2. Blocklist and allowlist |
| Abnormality Alarm | Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception |
| Intelligent Alarm | Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, Non motor Vehicles), IMD+, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| General Alarm | Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm |
| Alarm Linkage | Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Disk Group | Support |
| Alarm Input | 4 Channel |
| Alarm Output | 2 Channel |
| Hard Disk | 2 SATA ports, Each disk can contain up to 20 TB. This limit varies depending on the environment temperature |
| Multi-channel Playback | Up to 16 Channels |
| Record Mode | General, Motion detection, Intelligent, Alarm, POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback (Face and motion detection) |
| Smart Phone | iPhone, iPad, Android Phone |
| Interface Ports | 2 USB Ports (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS232, 1 RS485 |
| Ethernet | 1 x (10/100/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12(Profile S, Profile T, Profile G), CGI, SDK |
| Power Supply | 12 VDC, 4Amp |
| Power Consumption | Total output of NVR is ? 10 W (without HDD) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Dimensions | 375.0 mm × 284.4 mm x 56.0 mm |
| Weight | 1.57kg (without HDD) |
| OSD | GPS information, alarm, vehicle No., speed, date/time |
