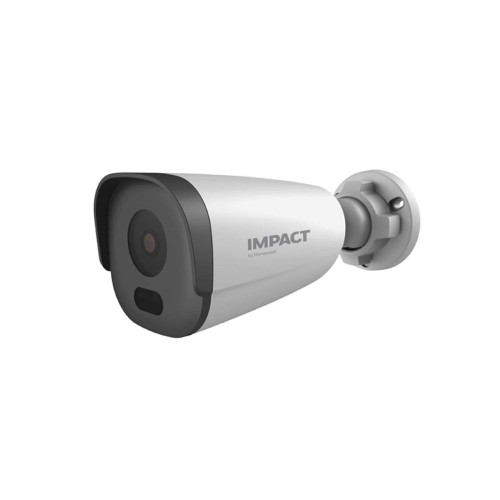

I-HIB2PI-EL 2MP Fixed IR Bullet Camera

CAMERA
Image Sensor 1/2.8” CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range Digital WDR
Angle Adjustment Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
LENS
Lens Type Fixed
Focus 4mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 83.3°(4mm) 46.8°(4mm)
ILLUMINATOR
IR LEDs 2
IR Range Up to 50m
Wavelength 850nm
SPECIFICATIONS

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
COMPRESSION STANDARD
Video Compression IH+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps
Max. Resolution 1920x1080
Main Stream PAL: 25fps (1920x1080, 1280x720, 704x576, 640x480)
NTSC: 30fps (1920x1080, 1280x720, 704x480, 640x480)
Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)

Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
OSD 16x16, 32x32, 48x48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Privacy Mask Yes, 4 regions
Smart Defog Yes
FEATURE
Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
NETWORK
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility ONVIF (PROFILE S/T/G), SDK
Remote Connection ?7
Client IH-VIEW
Web Version Web5
INTERFACE
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
GENERAL
Web Client Language English
Operating Conditions -30o
C~60o
C, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 6W(12V) MAX: 8W(POE)
Protection IP67, Lightning protection, surge protection
Dimensions 208×81×81mm(8.19×3.19×3.19inch)
Weight 0.35Kg (0.a77lb)
