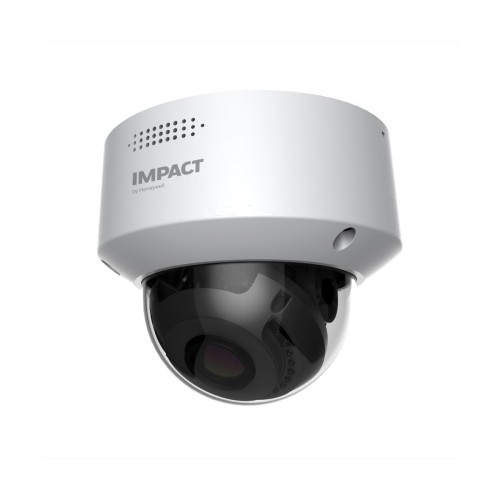

I-HID5PI-VS 4MP Motorized Starlight IR Dome Camera

₹12,657.00

(Inclusive of all taxes)

Installation Required ₹300.00

Full Metal Housing • Motorized Lens 2.8- 12mm • UP to 2592X1520, @ 25fps • IH+265/ H.265/H.264 • Min. illumination Color: [email protected] • 120dB WDR • Smart IR, IR Range: Up to30m • Support tripwire and perimeter • Bu

SKU: I-HID5PI-VS

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

CAMERA
Image Sensor 1/2.8” CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~330°, tilt 0~75°, roate 0~350°
LENS
Lens Type Motorized
Focus 2.8-12mm
Lens Mount 14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 100.4°~26.8°
ILLUMINATOR
IR LEDs 18
IR Range Up to 30m
Wavelength 850nm
SPECIFICATIONS

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
COMPRESSION STANDARD
Video Compression IH+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps
Max. Resolution 2592X1520
Main Stream PAL: 25fps (2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x720)
NTSC: 25fps (2592x1520, 2560x1440), 30fps (2304x1296, 1920x1080,1280x720)

Sub Stream PAL: 25fps (704x576, 704x288, 640x360, 352x288)
NTSC: 30fps (704x480, 704x240, 640x360, 352x240)

Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
OSD 16x16, 32x32, 48x48, 64x64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Privacy Mask Yes, 4 regions
Smart Defog Yes
FEATURE
Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
NETWORK
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI (IE)
Remote Connection ?7
Client IH-VIEW
Web Version Web5
INTERFACE
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
GENERAL
Web Client Language English
Operating Conditions -35o
C~65o
C, 0~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 7.5W (12V) MAX: 9W (PoE)
Protection IP67, IK10, Lightning protection, surge protection
Dimensions 143x124mm ( 5.63x4.88inch)
Weight 0.86Kg (1.90lb)
