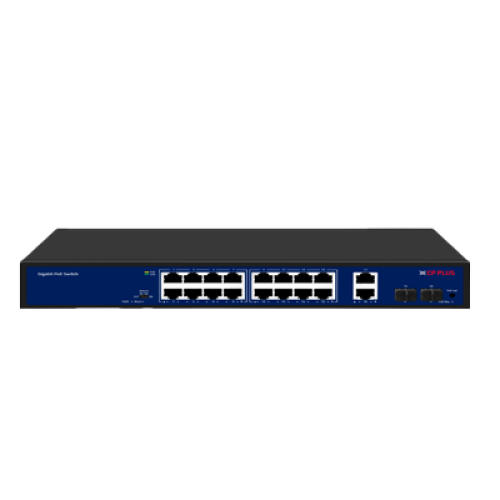

CP-DNW-GPU16G2F2-20 20 Ports Switch with 16 Gigabit PoE Ports & 2 Gigabit Uplink Ports + 2 SFP Ports

₹10,140.00

(Inclusive of all taxes)

Installation Required ₹550.00

• 16 port, 10/100/1000Mbps,RJ45 ports, Max. 30W Output of Single PoE Port • Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x • 2 Uplink port, 1000Mbps with Transmission distance of 0-100m • Easy and safe installation: wall-mounting, desktop, Kensington

SKU: CP-DNW-GPU16G2F2-20

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2 year

Description

Uplink Ports	2 Uplink Port, 1000Mbps RJ45 ports & 2 Gigabit SFP ports
Switch Capacity	40Gbps Full duplex
Packet Forwarding Rate	29.76Mpps
Port	20
PoE Ports	16, 10/100/1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
Transmission Distance	0-100m/1000Mbps or Port 9-16 Max. 250m/10Mbps via Cat.5e or more under Extend mode
MAC Address List	8K
PoE Feature	All ports support MDI/MDIX
PoE Standard	IEEE802.3af, IEEE802.3at
Packet Buffer	3Mb
Watchdog	Support
Surge Protection	Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV
ESD Protection	Air discharge: 8KV, Contact discharge: 6KV
PWR (Power Indicator)	Light on: Powering Light off: No Power
Operating Mode	Light off: Normal mode
1-20 Indicator (Link & Data)	Green light off: Link is disconnected, Green light on: Link is connected, Green light flash: Data Transmitting
1-16 Indicator (PoE)	Yellow light off: PoE not powering, Yellow light on: PoE powering
PoE Max Indicator	Light off: Indicates PoE power usage is less than 90%, Light flash: Indicates PoE power usage 90%?P?95%, Light on: Indicates PoE power usage 95%
PoE Led Button	It is used to switch whether the 1-16 indicator lights indicate the Link/Data status or the PoE status; Default indicates Link/Data status
Extend Switch	OFF: All ports can communicate with each other, the transmission rate is 10/100/1000Mbps adaptive, and the watchdog function is turned, off; ON: 9-16 ports can extend the transmission distance of the network cable to Max. 250 meters, the transmission rate becomes 10Mbps, and the watchdog function is turned on;
Network protocol and Standard	IEEE802.3/802.3u/802.3ab/802.3z/802.3x
Forwarding Mode	Store-and-forward
Operating Temperature	-10°C-50°C
Operating Humidity	10%-95% , non-condensing
Storage Temperature	-40°C-70°C
PoE Power Supply	1/2(+),3/6(-)
PoE Power Budget	200W
Power Source	Bult-in Power Supply, Input: 110-240V AC, 50/60Hz
Power Consumption	<5W
Dimension	320mm x207mm x 44mm
Weight	1.78kg
