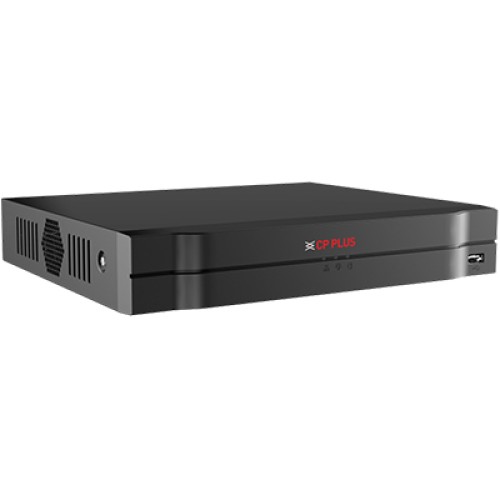

CP-UVR-1601E1-IC2 16Ch. 1080N Digital Video Recorder
₹6,080.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled |
| Two-way Talk | Support (share the same audio input with the first channel) |
| User Interface | Web; GUI |
| SMD Plus by DVR | 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Video Output | 1 HDMI, 1 VGA, HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Input | 16 channel, BNC |
| Encode Strategy | AI Instastream/Instastream |
| Video Compression | H.265+/H.264+/H.264 |
| Camera Input | 1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC |
| Video Display Split | 1/4/8/9/16 |
| Encoding Capacity | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF(1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps) |
| Bit Rate | 32 kbps–6144 kbps |
| Audio Input | 1 channel RCA 16-channel BNC (Coaxial Audio) |
| Audio Compression | G.711A, G.711U, PCM |
| General Alarm | Motion detection, video loss, tampering |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Playback | 1/4/9 Ch. |
| Audio Bit Rate | 64Kbps Per Channel |
| Playback Mode | Instant playback, general playback, event playback, tag playback |
| Backup Mode | USB Device/Network |
| Interface Ports | 2 USB Ports (2.0) |
| Ethernet | 1 (10/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P, ONVIF 21.06; CGI Conformant |
| Power Supply | DC12V/1.5A |
| Power Consumption | <10W(without HDD) |
| Working Temp | -10°C ~ +55°C (+14°F ~ +113°F), 0 ~ 90% RH |
| Dimension | 260.0 mm × 231.4 mm × 47.6 mm |
| Weight | 1.42 kg |
