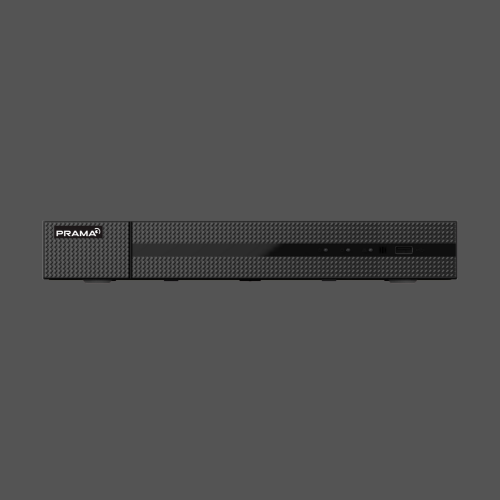

PT-NR2A16-Q2 16CH Prama Network Video Recorder

₹9,345.00

(Inclusive of all taxes)

Installation Required ₹600.00

Up to 8/16-ch IP camera inputs 265+/H.265/H.264+/H.264 video formats Up to 1-ch@8 MP/5-ch@1080p decoding capacity Up to 80/160 Mbps incoming bandwidth Professional and Reliability H.265+ compression effectively reduces the storage space by up to 75%

SKU: PT-NR2A16-Q2 16CH Prama Network Video Recorder

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

Specification

Model	PT-NR2A08-Q2	PT-NR2A16-Q2
Video and Audio
IP video input	8-ch	16-ch
	Up to 8 MP resolution
Incoming bandwidth	80 Mbps	160 Mbps
Outgoing bandwidth	80 Mbps
HDMI output	1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output	1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode	HDMI/VGA simultaneous output
CVBS output	N/A
Audio output	1-ch, RCA (Linear, 1 K?)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
Decoding format	H.265+/H.265/H.264+/H.264
Recording resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	8-ch	16-ch
Capability	1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type	Video, Video & Audio
Audio compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection	64
Network protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network interface	1, RJ-45 10/100 Mbps self- adaptive Ethernet interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 8 TB capacity for each disk
USB interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power supply	12 VDC, 3.33 A
Consumption (without HDD)	? 15 W
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10% to 90%
