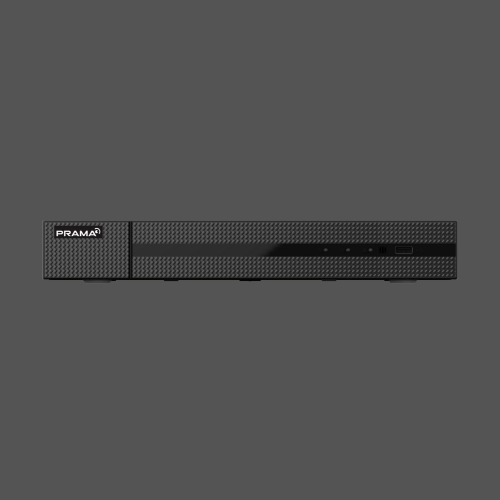

PT-NR2A16-Q1 16-Ch 4K Prama Network Video Recorder

Video/Audio Input

• IP video input16-ch Up to 8 MP resolution
• Two-way audio1-ch, RCA (2.0 Vp-p, 1 k ?)

Network

• Incoming bandwidth160 Mbps
• Outgoing bandwidth80 Mbps

Video/Audio output

• Recording resolution“8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/
  2CIF/CIF/QCIF”
• HDMI output resolution“1-ch, 4K (3840 × 2160)/30Hz, 1920 ×
  1080p/60Hz, 1600 × 1200/60Hz, 1280
  × 1024/60Hz, 1280 × 720/60Hz, 1024
  × 768/60Hz”
• VGA output resolution“1-ch, 1920 × 1080p/60Hz, 1280 ×
  1024/60Hz, 1280 × 720/60Hz, 1024 ×
  768/60Hz”
• Audio output1-ch, RCA (Linear, 1 K?)

Decoding

• Decoding formatH.265/H.265+/H.264/H.264+/MPEG4
• Live view / Playback resolution“8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/
  2CIF/CIF/QCIF”
• Synchronous playback16-ch
• Capability1-ch @ 8 MP / 4-ch @ 1080p

Network management

• Network protocolsTCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA1 SATA interface
• CapacityUp to 6TB capacity for each disk

External interface

• Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interface2 × USB 2.0

General

• Power supply12 VDC
• Power? 18W
• Consumption (without hard disk)? 10 W
• Working temperature-10 to +55º C (+14 to +131º F)
