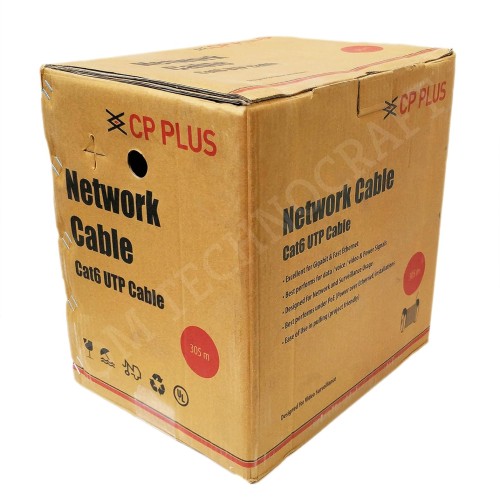

CP PLUS 4Pair UTP CAT6 INDOOR CABLE 305MTR (CP-EUT-6TGL23-305)

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹9,930.00

(Inclusive of all taxes)

Installation Required ₹40.00

IEC 11801, IEC 61156-5, ANSI/TIA /EIA- 568-C.2 Class E Standards backward Excellent Margin with suppression of Cross Talk (NEXT) 4 Pair Separator Design ISO Category 6

SKU: CP-EUT-6TGL23-305

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 0

Description

Conductor	Solid Bare Electrolytic Grade Copper
Nominal Conductor Diameter	24 AWG
Separator	Each pair separated with a cross separator
Pairing	2 insulated conductors twisted together
Separator Material	Polyethylene (HDPE)
Outer Sheath	FR PVC
Colour of Sheath	Grey
Approximate OD	5.5mm ± 0.1mm
Sheath Thickness	.45mm ± 05mm
Rip Cord	Yes
Sequential Marking	Every Meter
Characteristic Impedance	100 ±15?
Resistance Unbalance	5% Max
Nominal Velocity of Propagation	69%
Capacitance Unbalance	330pF/100m
Bending Radius	< 4 x Cable Diameter at -20° ±1°C
Delay Skew	<45nS
Packing	305 Mtrs
Temperature Rating	-15 to 70°C
Storage Temperature	0 to 50°C
Impedance	100±15% ?
Pulling Force	11.5Kg
