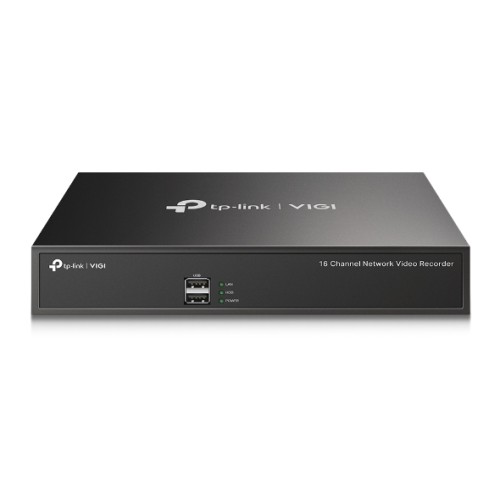

VIGI NVR1016H TPLINK 16CH Network Video Recorder

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹6,140.00

(Inclusive of all taxes)

Installation Required ₹600.00

24/7 Continuous Recording: Stores up to 16 TB of footage from connected cameras to secure your data for quick, convenient access. 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail,

SKU: VIGI NVR1016H TPLINK 16CH Network Video Recorder

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16

DECODING
Audio Compression	G.711A/G.711U/G.726
Decoding Format	H.265+/H.265/ H.264+/H.264
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access	Android, iOS
Incoming Bandwith	80 Mbps
Outgoing Bandwidth	60 Mbps
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

External Interface
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1

HARD DISK
SATA	1 SATA Interface
Capacity	Up to 16 TB

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm

INTERFACES
Network Interface	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0

GENERAL
Operating Temperature	-10–55 °C
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Weight	578.5 g
Package Contents	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	246.2 × 148.2 × 45 mm
External Power Supply	DC 12V/1.5A
Net Weight	0.61 Kg
Gross Weight	1.12 Kg
Power Consumption	4.25 W (without disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC

VIDEO/IMAGE
Synchronous Playback	16-Channel
Video Input	16-Channel IP Video Input, up to 8 MP Resolution
Recording Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
