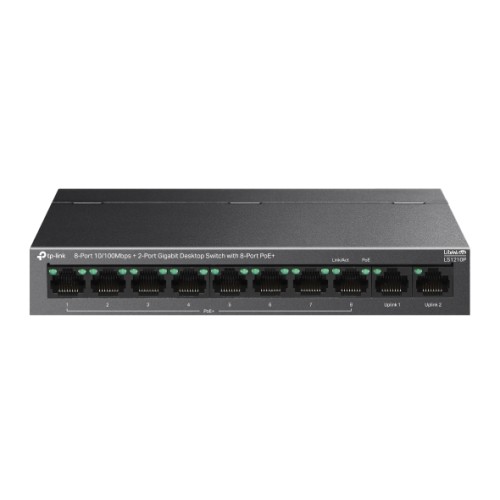

LS1210P 8-Port 10/100Mbps+2-Port Gigabit Desktop Switch with 8-Port PoE+

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹2,800.00

(Inclusive of all taxes)

Installation Required ₹500.00

8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*, 2x Gigabit non-PoE Ports, 96 W total PoE budget* Up to 250 m (820ft) data and power transmitting range under Extend Mode**, Isolation Mode allows one-click client traffic separation for hig

SKU: LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

HARDWARE FEATURES
Interface	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity	Fanless
Installation	• Desktop • Wall Mounting
Power Supply	External Power Adapter (Output: 53.5VDC / 1.31A)
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W
LED Indicator	• Power • Link/Act • PoE Status • PoE MAX
Dimensions ( W x D x H )	6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption	• 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation	• 12.48 BTU/h (220 V/50 Hz no PD connected) • 249 BTU/h (220 V/50 Hz with 63 W PD connected)

PERFORMANCE
Switching Capacity	1.8 Gbps
Packet Forwarding Rate	1.3392 Mpps
MAC Address Table	2K
Jumbo Frame	1.5 KB

SOFTWARE FEATURES
Advanced Features	• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission) • Isolation Mode Button (Ports 1–8) • PoE Auto Recovery Button (Ports 1–8) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
Transfer Method	Store and Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• LS109P • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
