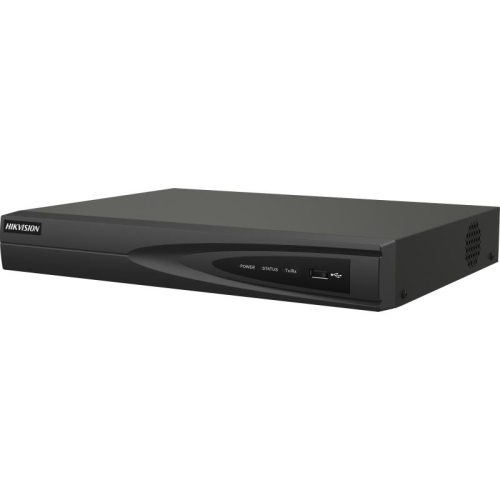

DS-7616NI-Q1 16-ch Hikvision 1U 4K NVR

Specification

Hikvision Model No. : DS-7616NI-Q1

Video/Audio input

IP video input : 16-ch, Up to 8 MP resolution

Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k ?)

Network

Incoming bandwidth : 160 Mbps

Outgoing bandwidth : 80 Mbps

Video/Audio output

HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio output : 1-ch, RCA (Linear, 1 K?)

Decoding

Decoding format : H.265/H.265+/H.264/H.264+/MPEG4

Live view / Playback resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous playback : 16-ch

Capability : 1-ch @ 8 MP / 4-ch @ 1080p

Network management

Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS

Hard disk

SATA : 1 SATA interface

Capacity : Up to 6TB capacity for each disk

External interface

Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

USB interface : 2 × USB 2.0

General

Power supply : 12 VDC

Power : ? 18W

Consumption (without hard disk) : ? 10 W

Working temperature : -10 to +55o C (+14 to +131o F)

Working humidity : 10 to 90 %

Chassis : 1U chassis

Dimensions (W × D × H) : 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight (without hard disk) : ? 1 kg (2.2 lb)
