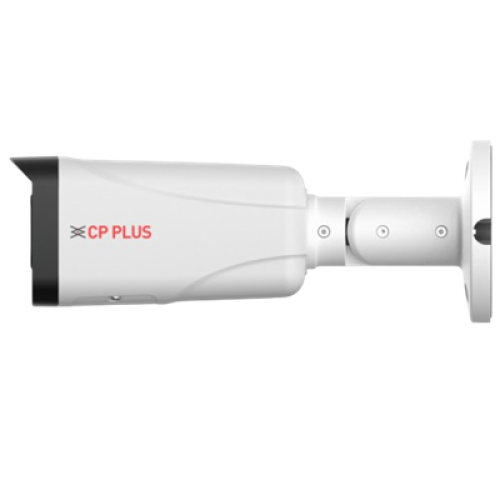

CP-UNC-TC41L5C-VMD-LQ 4MP Dual Light Bullet Camera - 50Mtr.

₹8,180.00

(Inclusive of all taxes)

Installation Required ₹350.00

1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 4MP (2688 × 1520)@1–25/30fps/ (2560×1440)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital wa

SKU: CP-UNC-TC41L5C-VMD-LQ

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2 Year Product Warranty

Description

Description

1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters)
Max. 4MP (2688 × 1520)@1–25/30fps/ (2560×1440)@1–25/30fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Quad stream
WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
IR Range of 50 Mtr., Warm Light Range of 30 Mtr.
3.6mm Lens (6mm Optional)
Support Starlight Technology
Micro SD Card, PoE, IP67, IK10 (optional)
Specification
Request for Information

Image Sensor	1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters)
Effective Pixels	2688 (H) × 1520 (V)
Minimum Illumination	0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM	128 MB
ROM	128 MB
DORI Distance	3.6mm: 58.89 m (Detect), 23.60 m (Observe), 11.79 m (Recognize), 5.90 m (Identify) 6mm: 85.5 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify)
Gain Control(AGC)	Auto/ Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Close Focus Distance	3.6mm: 1.3 m; 6mm: 2.6 m
Lens	3.6mm (6mm Optional)
Lens Mount	M12
S/N Ratio	>58 dB
Back Light Compensation	BLC/ HLC/ WDR(120dB)
Angle of view	3.6 mm: H: 84°; V: 44°; D: 105° 6 mm: H: 54°; V: 29°; D: 63°
Smart IR	Support
IR Control	Auto, Manual
IR Number	2 IR LED, 2 Warm Light
IR	IR Range of 50 Mtr.
Warm Light	Warm Light Range of 30 Mtr.
Smart Illumination	Support
Day/Night	Auto(ICR)/Color/B/W
Audio	Built-in Mic
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream)
Iris Control	Fixed
Stream Capability	Quad Stream
Frame Rate	Main stream: 4MP (2688 x 1520/ 2560 x 1440)@1–25/30fps, 3MP (2304 x 1296)@1–25/30fps, 2MP (1920 × 1080)@1–25/30fps, 1.3MP (1280 × 960)@1–25/30fps, 720p (1280 × 720)@1 25/30fps Sub stream 1: 720p (1280 × 720)@1–25/30fps, D1 (704 × 576 / 704 × 480)@1–25/30fps, VGA (640 × 480)@1–25/30fps, CIF (352 × 288/ 352 × 240)@1–25/30fps Sub Stream 2: D1 (704 × 576/ 704 × 480)@1–25/30fps, VGA (640 × 480)@1–25/30fps, CIF (352 × 288/ 352 × 240)@1–25/30fps Sub Stream 3: D1 (704 × 576/ 704 × 480)@1fps
Mirror Function	Support
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Resolution	4MP (2688 x 1520)/(2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Video Format	PAL/NTSC
Privacy Mask	4 areas
IVS (Perimeter Protection)	Tripwire, Intrusion, IMD (Intelligent motion detection)
ROI	Support (4 areas)
Audio Input	1 Channel (RCA port)
Audio Output	1 Channel (RCA port)
OSD	Camera title, Date & Time
Audio Compression	G.711a, G.711Mu, G.726, PCM, AAC
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
SDK and API	Support
Ethernet	RJ-45 (10/100 Base-T)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Alarm IN	1 Channel in: 5 mA 3–5 VDC
Alarm Out	1 Channel out: 300 mA 12 VDC
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Bit Rate Control	CBR/ VBR
Storage	SFTP, Mirco SD card (Max. 512GB)
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Alarm Event	No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, IMD (Intelligent motion detection), Security exception, External alarm
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Browser	IE, Chrome, Firefox
User/Host	6 (Total bandwidth: 36 M)
Hardware Reset Point	Support
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2 W (12 VDC); 2.6 W (PoE) Max. (H.265+ intelligence on + WDR + illuminator on): 6.1 W (12 VDC), 7.2 W (PoE)
Weatherproof Standard	IP67 & IK10 (optional)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	?95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	?95%
Casing	Metal
Dimensions	238.5 mm × 90.7 mm × 90.7 mm
Weight	720g
