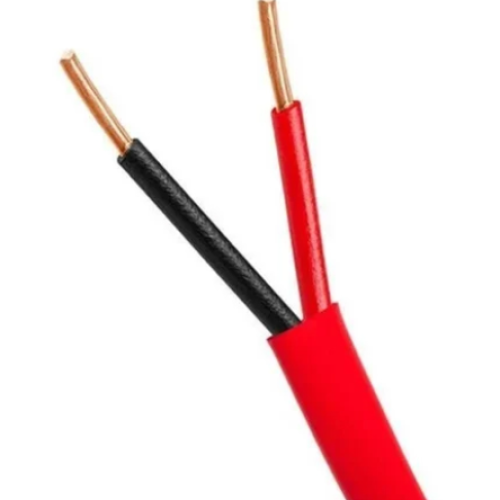

Kenter 2 Core Fire Cable Shielded Cable Red Colour (150Mtr)

1 Make KENTER 2 Size / No. of cores 2 core  x 1.5 sq. mm. 3 Conductor Class 5 Annealed Bare Copper Conductor 4 Cable type Twisted  Cores 5 Core Insulation PVC  type A  as per IS:5831-1984 6 Core colour Red & black  7 Inner sheath material NA 8 Shielded/ Unshielded Shielded  9 Screened material Aluminium Mylar- 15 X 30 microns 10 Drain wire Tinned Copper Conductor of 0.5 Sq.mm. 11 Armoured/ Unarmoured Unarmoured 12 Armouring NA 13 Outer sheath material FR-LSH  Type ST2 as per IS:5831-1984 14 Diameter over sheath 9.0 + 2MM 15 Outer sheath colour BLACK 16 Electrical parameters  a.  Max DC resistance of conductor at 20°C 13.3 ohms/km b.  H.V.test 1 KV for 1 minutes c.  Insulation resistance  36.7 Mohm-km at 27°c (min)  17 FR-LSH  properties  a.  Oxygen index ASTMD-2863 >29%(min) b.  Temperature index @ 21% oxygen >250°C(min)        c. HCL gas emission IEC-754-1 <20%       d. Smoke density ASTMD-2843   (% absorption) 40% max 18 Anti Termite Rodent Properties YES
