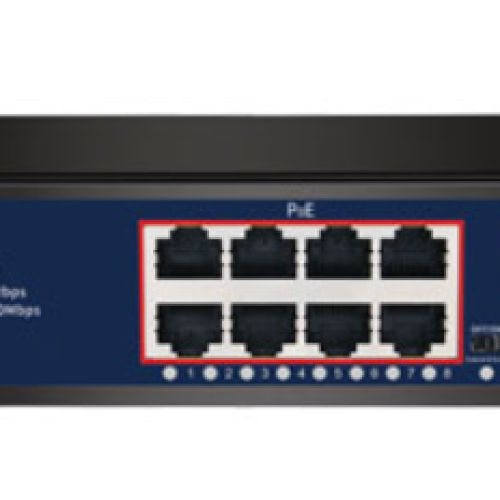

10 Ports Switch With 8 PoE Ports + 2 Gigabit Uplink Ports

Feature Specification Network Ports 10 Ports PoE Ports 8, 10/100Mbps; RJ45 Ports; Max. 30W Output of Single PoE Port Uplink Ports 2, 1000Mbps, RJ45 Ports, Transmission Distance: Default: 0-100m Power Indicator Light on: Powering Light off: No Power Mode Indicator Light off: Normal mode Flash: Extend mode 1-20 Indicator (Link & Data) Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting 1-16 Indicator (PoE) Yellow light off: PoE not powering Yellow light on: PoE powering PoE Max Indicator Light off: Indicates PoE power usage is less than 90% Light flash: Indicates PoE power usage 90%?P?95% Light on: Indicates PoE power usage 95%
PoE Led Button It is used to switch whether the 1-16 indicator lights indicate the Link/Data status or the PoE status, Default indicates Link/Data status Extend Switch OFF: All ports can communicate with each other, the transmission rate is 10/100/1000Mbps adaptive, and the watchdog function is turned off Network Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE802.3x Switch Capacity 40Gbps Full duplex Packet Forwarding Rate 29.76Mpps Packet Buffer 3Mb Forwarding Mode Store-and-forward
Feature Specification MAC Address Table 8K AI Watchdog Support PoE Standard IEEE802.3af, IEEE802.3at PoE Power Supply 1/2(+), 3/6(-) Transmission Distance 0-100m/1000Mbps or Port 9-16 Max. 250m/10Mbps via Cat.5e or more under Extend mode PoE Feature All ports support MDI/MDIX Power Source Built-in Power Supply PoE Power Budget 200W Power Consumption <5W ESD Air discharge: 8KV Surge Protection Common mode/RJ45 port: 4KV Operating Temperature -10°C ~50°C Operating Humidity 10%-95%, Non-condensing Storage Temperature -40°C~70°C Dimensions (L x W x H) 320mm x 207mm x 44mm Weight 1780g Certificates ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, TEC/ MTCTE
