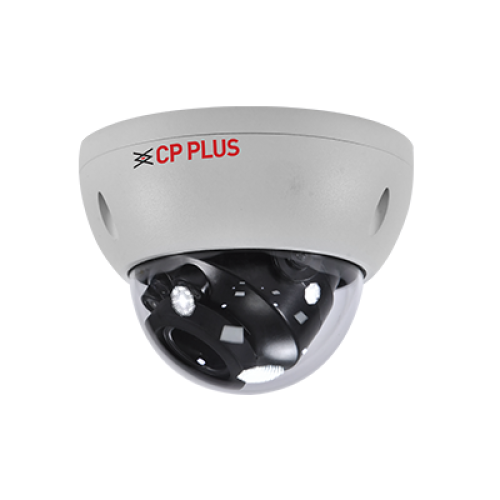

CP-UNC-VC81ZL5C-VMD-Q 8MP Network IR Vandal Dome Camera - 50Mtr.

₹10,655.00

(Inclusive of all taxes)

Installation Required ₹350.00

1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@1–20 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 2D NR, 3D NR, ROI, BLC, HLC, AWB, AGC, Digital watermarking 2.7 mm–

SKU: CP-UNC-VC81ZL5C-VMD-Q

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2Years Product Warranty

Description

Image Sensor	1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters)
Effective Pixels	3840 (H) × 2160 (V)
Minimum Illumination	0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–355°, Tilt: 0°–75°, Rotation: 0°–355°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
ROM	128 MB
RAM	128 MB
Close Focus Distance	0.8 m
Gain Control (AGC)	Auto, Manual
Lens Type	Motorized Vari-focal
Max. Aperture	F1.2
DORI Distance	Lens W: 85.3 m (Detect), 34.1 m (Observe), 17.1 m (Recognize), 8.5 m (Identify); Lens T: 280.0 m (Detect), 112.0 m (Observe), 56.0 m (Recognize), 28.0 m (Identify)
Lens	2.7 mm–13.5 mm
Angle of view	H: 113°–31°, V: 58°–18°, D: 138°–36°
S/N Ratio	>58 dB
IR Number	2 IR LED
IR	IR Range of 50 Mtr.
Day/Night	Auto(ICR)/Color/B/W
Back Light Compensation	BLC/ HLC/ WDR(120dB)
IR Control	Auto, Manual
Iris Control	Fixed
Smart search	Work together with AI NVR to perform refine AI search, event extraction and merging to event videos
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Resolution	8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4.6MP (2880 × 1620), 4MP (2688 × 1520), 3MP (2048 × 1536), (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Stream Capability	Quad Stream
Frame Rate	Main stream: 8MP (3840 × 2160)@1–20 fps/ 4MP (2688 × 1520)@1–25/30 fps Sub Stream 1: D1@25fps Sub Stream 2: D1@25fps Sub Stream 3: D1@1fps
Noise Reduction	2D NR, 3D NR
Motion Detection	OFF/ON (8 areas, rectangular)
Video Format	PAL/NTSC
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps
Protocol	FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Ethernet	RJ-45 (10/100 Base-T)
Alarm Event	No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, Defocus detection, External alarm, IMD (Intelligent motion detection), Security exception
Mirror Function	Support
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
User/ Host	6 (Total bandwidth: 48 M)
Audio Compression	G.711a, G.711Mu, G.726, PCM, AAC
Audio Input	1 channel (RCA port)
Audio Output	2 channel (RCA port)
Alarm IN	1 Channel in: 5mA 3V–5 VDC
Alarm Out	1 Channel out: 300mA 12 VDC
Browser	IE, Chrome, Firefox
Storage	FTP, NAS, Mirco SD card (Max. 512GB)
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.7 W (12 VDC), 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC), 7.3 W (PoE)
Weatherproof Standard	IP67, IK10
Operating Temperature	–30°C to +60°C
Operating Humidity	?95%
Storage Temperature	–30°C to +60°C
Storage Humidity	?95%
Dimensions	93.4 mm × ?122 mm
Weight	510g
