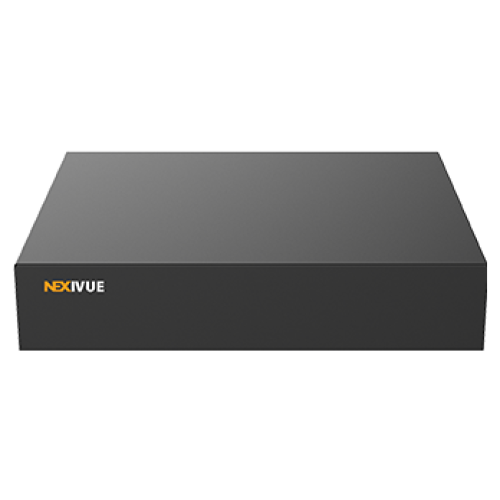

Nexivue 16 Channel Network Video Recorder 4K Support H1 Series 7A16B-H1
₹7,199.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Operating System | Embedded LINUX |
|---|---|
| IP Camera Input | 16 Channels |
| Video Input | 16Channel(12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 1280x1024/ 960p/ 720p/ D1/ CIF) |
| Resolution | 12MP (4000 x 3000), 8MP (3840 × 2160), 6MP (3072 x 2048), 5MP (2592 × 1944), 4MP (2688 × 1520/ 2560 × 1440), 3MP (2048 × 1536), 1080P (1920 × 1080), (1280 x 1024), 960P (1280 x 960), 720P (1280 × 720), 960H (960 x 480), D1 (720 × 576/ 720 × 480) |
| Preview capability | 1 CH 12MP/8MP@25fps, 2 CH 6MP/5MP@25fps, 4 CH 4MP/3MP@25fps, 7 CH 1080p@25fps, 16 CH 720p/D1@25fps |
| Playback Capability | 1CH 12MP/ 8MP@25fps, 2 CH 6MP/ 5MP@25fps, 4 CH 4MP/ 3MP@25fps, 7 CH 1080p@25fps, 16 CH 720p/ D1@25fps |
| Bandwidth Rate | 128 Mbps for Input, 128 Mbps for Recording and 80 Mbps for Transmission |
| Video Output | 1 HDMI: 4K (3840 x 2160), 2K (2560 x 1440), (1920 x 1080), (1280 x 1024), (1280 x 720), (1024 x 768) 1 VGA: 2MP (1920 x 1080), (1280 x 1024), (1280 x 720), (1024 x 768) |
| Video Display Split | 16 Channel/ 13 Channel/ 10 Channel/ 9 Channel/ 8 Channel/ 6 Channel/ 4 Channel/ 2 Channel/ 1Channel |
| Record Mode | Manual/ Normal Record/ Motion Detection/ Smart Event |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Motion Detection | 16 Channel, MD Zones: 396 (22 x 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Show Message, Pop Window, Buzzer up |
| Smart Event | Enables event-based recording and actions for efficient monitoring, Event like Loitering Detection, Line crossing Detection, Intrusion Detection, People Gathering. |
| Search Mode | ALL, Normal Video, Motion Detection, Tag Search, Smart Event, Picture, Log |
| Playback function | Play, Pause, Fast forward, Rewind, Previous frame, Next frame, Zoom, Clip, Audio |
| Digital Zoom | Support |
| Video Compression | NEXICODE, H.265, H.264 |
| Audio Compression | G711U, G711A, AAC |
| Audio Input | 1 Port RCA, Support 16 Channels IPC |
| Audio Output | 1 Port RCA , HD output |
| Audio Bit Rate | 64kbps |
| Protocols | IPv4/ IPv6/ TCP/ IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, NexiQloud, PPPOE, SNMP, Onvif (Profile S, Profile T) |
| Remote Operations | Support |
| OTA Upgrade | Support |
| Backup Mode | USB Device/ Network |
| Browser | Edge, Google Chrome, Firefox, Safari |
| USB Interface | 2 USB 2.0 Interfaces |
| Ethernet | 1 x RJ45 (10M/100M/1000M self - adaptive Ethernet Interface) |
| Storage Capacity | 1 SATA Hard Disk Interface (3.5" SATA), Up to 16TB capacity |
| Power Consumption | DC12V/2A ? 10W (Without Hard Disk) |
| Operating Temperature | -10°C ~50 °C |
| Operating Humidity | 10% ~90%( Humidity) |
| Dimensions | 260mm x 230mm x 43mm |
| Weight | 850g (Without HDD) |
