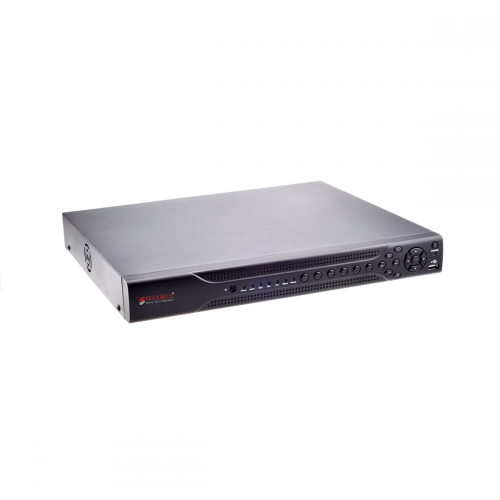

Securus AI Network Video Recorder 32 Channel NVR SS-N8032RV-H4-M5
₹26,609.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Parameter | Details |
| Model | SS-N8032RV-H4-M5 |
| Make | SECURUS |
| User Interface | Graphic User Interface (GUI) |
| Operating System | Embedded Linux |
| Operation Mode | Preview, Record, Playback, Backup, Network, Smart Search |
| Playback Mode | Common Playback, Smart Search |
| Password Security | Multi-level User Management |
| ONVIF | Support |
| Video Input | 32ch 5M/32ch1080P/8ch4K |
| HDMI Output | Supports (Max : 4K) |
| VGA Output | Supports (Max : 1080P) |
| CVBS main output | N.A. |
| Audio Input | 1 Ch |
| Audio output | 1 Ch, RCA connector |
| Display | 1/4/6/8/9/10/13/16/25/32 optional |
| Video standard | PAL/NTSC |
| Video compression | H.265AI/H.265+/H.265/H.264+/H.264 |
| Intelligent Functions | Face Detection, Vehicle Detection, Human Detection, Active Deterrence, Line Crossing, Trip Wire, People Counting |
| Video encoding resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 1080P |
| Network Protocol | HTTP, TCP/IP, UDP, DNS/DDNS, RTP, RTSP, DHCP, NTP |
| Video frame rate | PAL: 1-25 FPS NTSC: 1-30FPS |
| Video bit rate | 1536kbps-3072kbps |
| Stream Type | Video & Audio/Video |
| Audio compression | G.711a |
| Recording mode | Always/Schedule/Alarm Recording/Motion Detection Recording |
| Video search | Time/Channel/Event/Face Search/Vehicle Search |
| Display Zoom | Live Playback & Mobile |
| Audio bit rate | 8—32kbps |
| Dual-stream | Supports |
| Mobile Monitoring | "RMEye Pro" Application for Android And iPhone |
| Recording resolution | 32 CH Realtime Recording |
| HDD Port | 4 SATA |
| HDD Maximum Capacity | 12TB for each Sata connector |
| Voice talk | Support; 1CH BNC line in/1CH RCA Audio out. |
| Record mode | Audio & Video recording simultaneously |
| Remote control | Supports |
| Network protocol | Supports IE/PPPoE/DDNS |
| Multiple IP Network Configuration | Supported |
| Network Bandwidth | 240 Mbps Incoming / 240 Mbps Outgoing |
| DDNS Server | www.securusddns.com |
| Network | 1 RJ45 10M/100M/1000M |
| NVR to NVR Cascading | Remote, Local, Viewing, Recording |
| IPC firmware update | Supported |
| USB Connector | 2 x USB2.0, 1 x USB3.0 |
| Firmware update | Support USB update/Network update |
| Serial Interface | RS485, RS232 |
| Alarm input | 16 |
| Alarm output | 4 |
| Power supply | NVR: DC 12V 6A |
| Redundancy | Available |
| Network Security | Support Blacklist/Whitelist to prevent unauthorized Network Access |
| Virtual Lan | Configure with Multi IP Addresses |
| Operation Temperature | -10? to?65? |
| Operation Humidity | 10? to 90? |
| Chassis | Standard 1.5U |
| Dimension | 400.5mm (W) × 440mm (L) × 60mm (H) |
| Weight(without HDD) | ?1.0Kg |
| Certifications | CE, FCC, RoHS, BIS |
