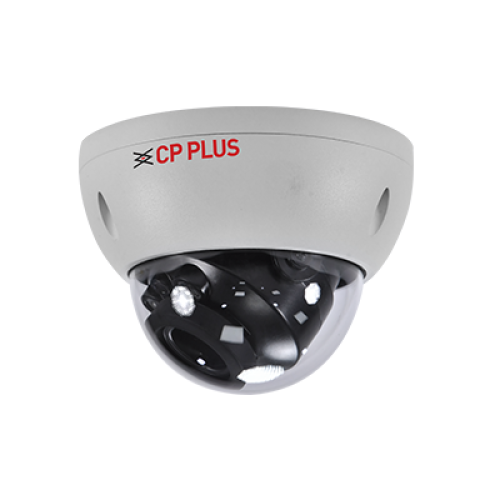

CP-UNC-VC41ZL5C-VMD-Q 4MP Network IR Vandal Dome Camera - 50Mtr.
₹11,942.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Image Sensor | 1/2.7" 4MP PS CMOS Image Sensor (0.9407 Centimeters) |
| Effective Pixels | 2960 (H) × 1668 (V) |
| Minimum Illumination | 0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–75°, Rotation: 0°–355° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| ROM | 128 MB |
| RAM | 256 MB |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Lens | 2.7 mm–13.5 mm |
| Max. Aperture | F1.4 |
| Close Focus Distance | 0.8 m |
| Lens Mount | ?14 |
| DORI Distance | Lens W: 64.0 m (Detect), 25.6 m (Observe), 12.8 m (Recognize), 6.4 m (Identify) Lens T: 210.0 m (Detect), 84.0 m (Observe), 42.0 m (Recognize), 21.0 m (Identify) |
| Lens Type | Motorized Vari-focal |
| Gain Control (AGC) | Auto, Manual |
| IR Control | Auto, Manual |
| IR Number | 2 IR LED |
| IR | IR Range of 50 Mtr. |
| Audio | Built-in Mic |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Angle of view | H: 113°–31°, V: 58°–18°, D: 138°–36° |
| S/N Ratio | >58 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| OTA (Over-The-Air) | Support |
| Resolution | 4MP (2688 × 1520), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576), VGA (640 × 480), (352 × 288) |
| Stream Capability | Quad Stream |
| Frame Rate | Main stream: 4MP(2688 x 1520)@ 1-25/30FPS 3MP(2048 x 1536)@ 1-25/30FPS, (2304 x 1296)@ 1-25/30FPS, 2MP(1920 x 1080)@ 1-25/30FPS, 1.3MP(1280 x 960)@ 1-25/30FPS,720p(1280 x 720)@1-25/30FPS Sub Stream1:- D1(704 x 576)@ 1-25/30FPS, VGA(640 x 480)@ 1-25/30FPS, CIF (352 x 288)@ 1-25/30FPS Sub stream 2:-D1 (704 x 576)@ 1-25/30FPS, VGA(640 x 480)@ 1-25/30FPS, (352 x 288)@ 1-25/30FPS Sub stream 3:- D1(704 x 576)@ 1FPS, VGA(640 x 480)@ 1FPS, (352 x 288)@ 1FPS *The sub streams max. frame rates depends on main stream frame rates |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| Smart search | Work together with AI NVR to perform refine AI search, event extraction and merging to event videos |
| Mirror Function | Support |
| Iris Control | Fixed |
| Noise Reduction | 2D NR, 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| IVS (Optional) | Intrusion, Tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Video Format | PAL/NTSC |
| Privacy Mask | 4 areas |
| ROI | Support (4 areas) |
| OSD | Camera title, Date & Time, Channel Title, Time Title, Location, Font Properties, Custom Title |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100 Base-T) |
| Alarm Event | No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, Defocus detection, External alarm, IMD (Intelligent motion detection), Security exception |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Audio Compression | G.711a, G.711Mu, G.726, PCM, AAC |
| Audio Input | 1 Channel (RCA port) |
| Audio Output | 1 Channel (RCA port) |
| Alarm IN | 1 Channel in: 5 mA 3–5 VDC |
| Alarm Out | 1 Channel out: 300 mA 12 VDC |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| User/ Host | 6 (Total bandwidth: 48 M) |
| Browser | IE, Chrome, Firefox |
| Weatherproof Standard | IP67, IK10 |
| Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS |
| Power Source | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.4 W (12 VDC), 3 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.2 W (12 VDC), 7.4 W (PoE) |
| Operating Temperature | –30°C to +60°C |
| Operating Humidity | ?95% |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Casing | Metal |
| Dimensions | 93.4 mm × ?122 mm |
| Weight | 510g |
