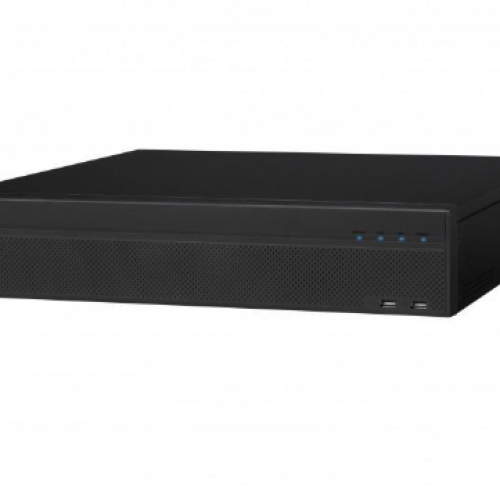

DHI-NVR5864-EI

Industrial-grade processor

Embedded Linux

Web, Local GUI

Face detection; face recognition; perimeter protection; SMD Plus

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection

Max. 32-channel, 1 combined event per channel/s

4 channels, 10 IVS rules for each channel

All channels (16 targets/s)

Gender; age group; glasses; expressions; face mask; beard

2 channels (up to 12 face images/s each channel)

16 channels

Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s

2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s

16 channels

8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

All channels (32 targets/s)

8 channels

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.

Vehicle model, vehicle color, number of persons, helmet.

All channels (8 targets/s)

1. Create up to 20,000 plate numbers.

2. Blocklist and allowlist

64 channels

AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing

AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps

AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps

2 VGA, 2 HDMI

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

HDMI: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Heterogeneous video source output for HDMI1 and HDMI2

Simultaneous video source output for VGA1 and HDMI1

Simultaneous video source output for VGA2 and HDMI2

Main screen: 1/4/8/9/16/25/36/64

Sub screen: 1/4/8/9/16

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

G.711a; G.711u; PCM; G726

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI

iOS; Android

ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Chrome; IE; Safari; Edge; Firefox

Multi-address; load balance; fault tolerance; link aggregation

Up to 16 channels

General, motion detection; intelligent; alarm; POS

USB device and network

Instant playback, general playback, event playback, target video, video clip, tag playback, smart playback (face and motion detection)

Yes

RAID 0/1/5/6/10

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection

Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log, preset; email

1-channel RCA

2-channel RCA

16 channels

8 channels (1-channel 12 V 1 A output?

8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

1

1

2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication)

4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)

2

2

2 (10/100/1000 Mbps Ethernet port, RJ-45)

100–240 VAC, 50-60 Hz

Total output of NVR is ? 13 W (without HDD)

6.40 kg (14.11 lb)

9.01 kg (19.86 lb)

439.9 mm × 457.9 mm × 89.0 mm (17.32" × 18.03" × 3.50") (W × D × H)

570.0 mm × 570.0 mm x 226.0 mm (22.44" × 22.44" × 8.90") (W ×D × H)

–10 °C to +55 °C (+14 °F to +131 °F)

–20 °C to +60 °C (–4 °F to +140 °F)

10%–93% (RH), non-condensing

FCC: 47 CFR FCC Part15, SubpartB, Class A

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014

CE-LVD: EN 62368-1:2014
