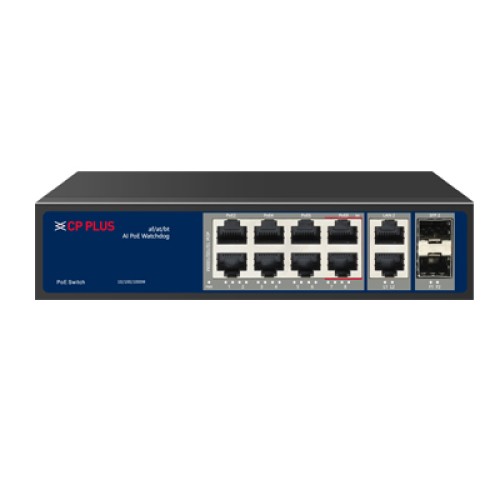

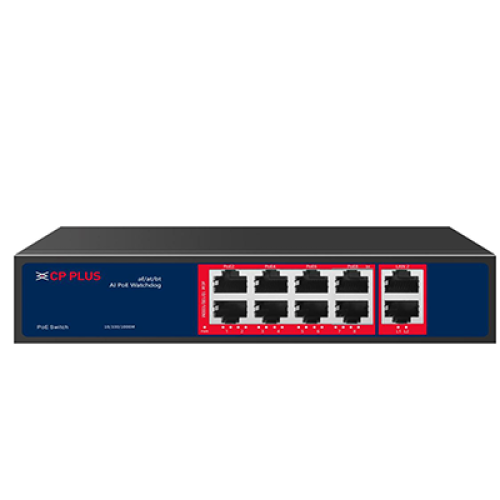

CP-ANW-GPU8G2-N12 8x Gigabit PoE with 2x Gigabit Uplink, Unmanaged

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹3,500.00

(Inclusive of all taxes)

Installation Required ₹500.00

Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet Support 6KV Lightning and 8KV ESD Protection Support: 8 ports PoE + 2 ports Uplink PoE Power Bu

SKU: CP-ANW-GPU8G2-N12

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2Years

Description

Network Standard	IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
Network Port	PoE (1~6):10/100/1000Mbps PoE ports (RJ45), PoE (7~8):10/100/1000Mbps PoE ports (RJ45),Support bt 60W High Power, LAN(1~2):10/100/1000Mbps uplink ports (RJ45)
Bandwidth	20 Gbps
MAC Address List	4K
Transmission Distance	120m
Transmission Rate	2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex
Network Latency	(10 to 1000Mbps): ?16?s (use the 64byte package size)
The Frame Filter & Transmis-	14800pps the most for 10M port, 148800pps the most for 100M port, 1488000pps the most for 1000M port
Lightning Protection	6KV, Per: IEC61000-4-5
ESD Protection	8KV, Per: IEC61000-4-2
AI Watchdog	Port 1~8
Power Input	AC 90~240V Total?120W
Power Output	PoE1~6 Port:1/2(+52V), 3/6(GND)?30W PoE7~8 Port:1245(+53V), 3678(GND) Compatible1/2 (+52V), 3/6(GND)?60W
Operating Temperature	-30°C ~60°C
Storage Temperature	-40°C ~70°C
Storage Humidity	5%~90% (Non-condensing)
Operating Humidity	10%~90% Non-condensing
Dimensions	187mm x 139mm x 43mm
Weight	1Kg
