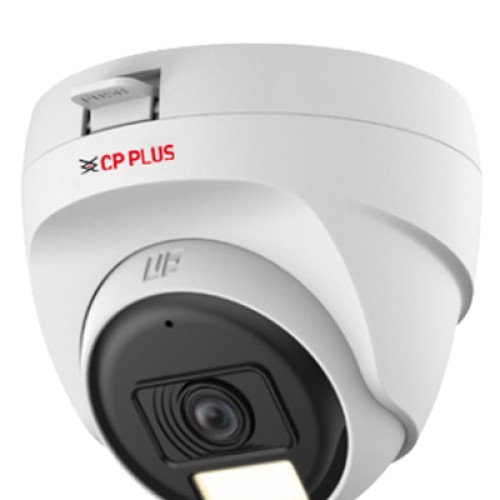

CP-URC-DC24PL3C-L-V2 2.4MP Dual Light Dome Camera - 30Mtr.

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹1,499.00

(Inclusive of all taxes)

Installation Required ₹350.00

2.4MP PS CMOS Image Sensor Max. 2.4MP (1920 × 1080) @ DWDR, Day/Night (ICR), 2D DNR, BLC, HLC 3.6mm fixed lens (2.8 mm Optional) IR Range of 30 Mtr., Warm Light Range of 20 Mtr., Smart IR 4 Signals over 1 Coaxial Cable Support Built-in

SKU: CP-URC-DC24PL3C-L-V2

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

Image Sensor	2.4MP PS CMOS Image Sensor
Minimum Illumination	0.02 [email protected] (Color, 30 IRE), 0.002 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Max. Resolution	1920 (H) × 1080 (V)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed	PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s
White Balance	Auto, Area white Balance
Lens Type	Fixed-foca
Lens	3.6mm (2.8mm optional)
DORI Distance	Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m
Max. Aperture	F2.0
Lens Mount	M12
Close Focus Distance	3.6 mm: 0.8 m, 2.8 mm: 0.5 m
Gain Control (AGC)	Auto/Manual
S/N Ratio	>55 dB
Angle of View	3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°
Back Light Compensation	BLC/HLC/DWD
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Resolution	1080p (1920 × 1080), 960H (960 × 576/960 × 480)
Frame Rate	CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
Noise Reduction	2D DNR
Privacy Mask	Off/On (8 areas, rectangle)
Day/Night	Auto(ICR)/Color/B/W
IR Number	2 Warm Light, 2 IR Light
IR	IR Range of 30 Mtr.,
IR Control	Auto, Manual
Mirror Function	Support
Iris Control	Fixed
IR Mode	Smart IR&WL, WL Mode, IR Mode
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	<95% (RH), non-condensing
Power Source	12 VDC ± 30%
Power Consumption	Max 2.1 W (12 VDC, LED on)
Dimension	85.0 mm × 77.1 mm
Weight	0.11kg
