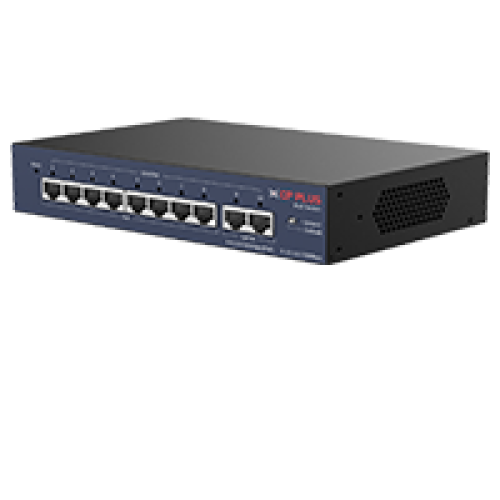

CP-UNW-HPU8H2-96 10 Ports Switch with 8 PoE Ports & 2 Uplink Ports

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹1,560.00

(Inclusive of all taxes)

Installation Required ₹500.00

Port 1-8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100 Mbps (Uplink) IEEE802.3, IEEE802.3u, IEEE802.3x Transmission distance of ports 1–8 can reach up to 250 Mtr., Negotiation speed can be reduced to 10 Mbps Easy and safe installation: wal

SKU: CP-UNW-HPU8H2-96

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2

Description

Network Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Switching Capacity	1.6 Gbps
Packet Forwarding Rate	1.488 Mbps
MAC Address List	2K
Packet Buffer	768 Kbit
DIP switch	Long Distance PoE: The transmission distance of ports 1–8 can reach up to 250 Mtr., The negotiation speed can be reduced to 10 Mbps
ESD Protection	Air discharge: 8KV, Contact discharge: 6KV
Lightning Protection	Common mode: 6KV
PoE Pin Assignment	1/2+, 3/6-
Long Distance PoE Transmission	Support
Description of Function Slots	Port 1-8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100 Mbps (Uplink)
Jumbo Frame	2048 Byte
PoE Power	Port 1-8?30 W, total?96 W
Power Supply	Built-in power supply:200-240 VAC, 50/60 Hz, Max. 1.5A
Power Consumption	Idling: 0.6W, Full load: 96W
Operating Temperature	–10°C to +45°C
Operating Humidity	10%–90% (RH), non-condensing
Storage Temperature	–40°C to +75°C
Storage Humidity	5%–95% (RH), non-condensing
Casing	Sheet Metal
Dimensions	200mm × 139.9mm × 44mm
Weight	610 g
