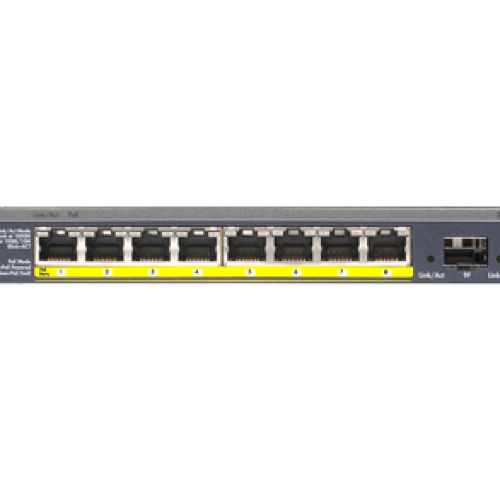

GS110TP - 10-Port Gigabit Ethernet Smart Switch with 8 PoE Ports and 2 Dedicated SFP Ports

Technical Specifications • Network Protocol and Standards Compatibility – IEEE 802.3i 10BASE-T – IEEE 802.3u 100BASE-TX – IEEE 802.3ab 1000BASE-T – IEEE 802.3z 1000BASE-X – IEEE 802.3x full-duplex flow control – IEEE 802.3af (DTE Power Via MDI) • Power Supply – Power consumption: 59.3W maximum • Network Ports – Eight (8) 10/100/1000 Mbps autosensing + 2 Gigabit SFP uplinks • Physical Specifications – Dimensions: (W x D x H): 236 x 101.6 x 27 mm (9.3 x 4 x 1.07 in) – Weight: 0.7 kg (1.55 lb) • Performance Specifications – Forwarding modes: Store-and-forward – Bandwidth: 20 Gbps full duplex – Network latency: Less than 4 ?s for 64-byte frames in store-and-forward mode for 1000 Mbps to 1000 Mbps transmission – Buffer memory: 512 KB embedded memory per unit – Address database size: 4k media access control (MAC) addresses per system – Mean time between failures (MTBF): 157,004 hours (~18 years) – Acoustic noise: 0 dB • Electromagnetic Emissions – CE mark, commercial – FCC Part 15 Class B – VCCI Class B – C-Tick • Environmental Specifications – Operating temperature: 32° to 122° F (0° to 50° C) – Storage temperature: -4° to 158° F (-20° to 70° C) – Operating humidity: 90% maximum relative humidity, non-condensing – Storage humidity: 95% maximum relative humidity, non-condensing – Operating altitude: 10,000 ft (3,000 m) maximum – Storage altitude: 10,000 ft (3,000 m) maximum • Status LEDs – Per RJ45 port: Link/activity, speed, PoE status – Per SFP port: Link/speed – Per device: Power, PoE Max • Power Adapter – 48V, 1.25A external power adapter, localized to country of sale Electromagnetic Immunity – EN 55024 • Safety – CE mark, commercial – cUL IEC 950/EN 60950 – CB • Administrative Switch Management – IEEE 802.1Q static VLAN (64 groups, static) – Protected ports – IEEE 802.1p Class of Service (CoS) – Port-based QoS – DSCP-based QoS – DiffServ – IEEE 802.3ad Link Aggregation (manual or LACP) – IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) – IEEE 802.1s Multiple Spanning Trees Protocol (MSTP) – IEEE 802.1ab Link Layer Discovery Protocol (LLDP) – LLDP-MED – SNMP v1, v2c, v3 – RFC 1213 MIB II – RFC 1643 Ethernet Interface MIB – RFC 1493 Bridge MIB – RMON group 1, 2, 3, 9 – Auto voice VLAN – DHCP Filtering – Auto denial-of-service (DoS) protection – HTTP and HTTPS – Ping and traceroute – Green features: Power saving by cable length (<10 m) – Power saving when link down – RFC 2131 DHCP client – DHCP filtering – IEEE 802.1x with Guest VLAN – Jumbo frame support – Port-based security by locked MAC addresses – MAC and IP-based ACL – Storm control for broadcast, multicast and unknown unicast packets – IGMP snooping v1/v2 – Port-based egress rate limiting – SNTP – Port mirroring support (many-to-one) – Web-based configuration – Configuration backup/restore – Password access control – TACACS+ and RADIUS support – Syslog – Firmware upgradeable – PoE (46 Watts of power budget) NETGEAR Related Products Network – ProSafe® 802.11g Wireless Access Point (WG302) – ProSafe® 802.11g Wireless Access Point (WG103) – ProSafe® 802.11n Dual Band Wireless Access Point (WNDAP330) Desktops – Gigabit Ethernet PCI Adapter (GA311) System Requirements – Category 5 network cables – Network card for each PC – Network software (e.g., Microsoft Windows®) – Web browser (e.g., Internet Explorer® 5.0 or higher, Netscape® 6.0 or higher) Warranty and Support – ProSafe Lifetime Warranty† – ProSupport 24x7 Advanced Technical Support, 1 year (included)* ProSupport™ Service Packs Available – XPressHW, Category 1: PRR0331 (3-year next-business day hardware replacement contract) – OnCall 24x7, Category 1: PMB0331 (3-year Advanced Technical Support contract, including Remote Diagnostics performed by our technical experts for prompt resolution of technical issues, and next-business day hardware replacement) Package Contents – ProSafe® 8-port Gigabit PoE Smart Switch with 2 Gigabit Fiber SFP (GS110TP) – AC adapter – Rubber footpads – Wall-mount kit – Resource CD – Installation guide Ordering Information – Australia & Japan: GS110TP-100AJS – Europe General: GS110TP-100EUS – North America: GS110TP-100NAS
