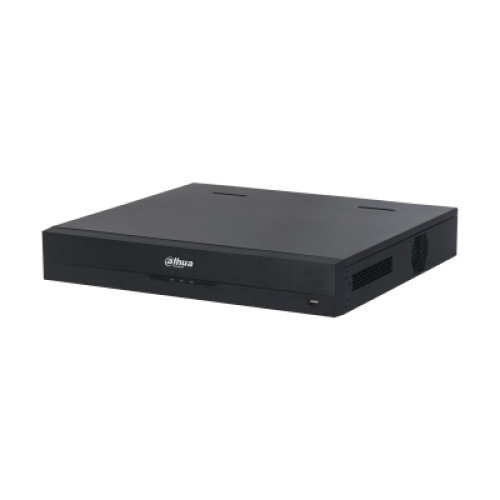

DH-XVR5232AN-I3 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense Digital Video Recorder

Industrial-grade processor

Embedded Linux

Web; Local GUI

Advanced Mode: 2 channels, 10 IVS rules for each channel

General Mode: 4 channels, 10 IVS rules for each channel

6 attributes

2 channels (up to 12 face images/s each channel)

Up to 10 face databases with 10,000 images.

2 channels

32 channels:

Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

40 channels

32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

1 channel

1 channel

32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.

2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

Up to 40 channels of IPC access

8 IP channels by default +32 channels (analog channels are converted to IP channels)

incoming bandwidth: 160 Mbps, recording bandwidth: 160 Mbps and outgoing bandwidth: 160 Mbps

*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used.

Main stream:

5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps)

5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)

Sub stream: D1/CIF@(1 fps–15 fps)

Yes

32 kbps–6144 kbps

8 kHz, 16 bit

64 kbps

1 HDMI, 1 VGA, 1 TV

HDMI : 3840 × 2160,1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

1/4/8/9/16/25/36

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

G.711a; G.711u; PCM

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

iOS; Android

ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK

Chrome; IE; Safari; Edge; Firefox

General; alarm; motion detection; intelligent; POS

1/4/9/16

USB device and network

Instant playback; general playback; event playback; tag playback; smart playback

Yes

Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Face detection; face recognition; perimeter protection; SMD Plus

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

1 channel

1-channel RCA

32-channel BNC (Coaxial Audio)

1-channel RCA

Yes (share the same audio input with the first channel)

2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

1

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

1

1

1 (10/100/1000 Mbps Ethernet port, RJ-45)

12 VDC, 5 A

<17 W (without HDD)

1.98 kg (4.36 lb)

3.15 kg (6.94 lb)

375.0 mm × 289.6 mm × 53.0 mm(14.76" × 11.40" ×

2.09") (W × D × H)

433.0 mm × 141.0 mm × 366.0 mm(17.05" × 5.55" ×

14.41") (W × D × H)

–10 °C to +55 °C (+14 °F to +131 °F)

–20 °C to +60 °C (–4 °F to +140 °F)

10%–90% (RH), non-condensing

Desktop

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

FCC: Part 15 Subpart B
