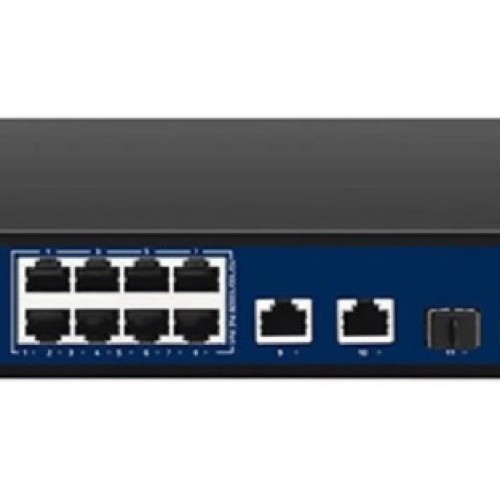

CP-DNW-GPU8G2F2-96 10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports, 2 SFP Ports

Feature Specification Uplink Ports 2 x 1000Mbps RJ45 ports + 2 x 1000Mbps SFP ports Network Standard IEEE802.3i/802.3u/802.3x/802.3af/802.3ab/ IEEE 802 Switch Capacity 24Gbps Full duplex Packet Forwarding Rate 1.488Mpps/port PoE Ports 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Network Ports 12 port Transmission Distance 0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode MAC Address List 2k PoE Feature All ports support MDI/MDI PoE Standard IEEE802.3af, IEEE802.3at PoE watchdog Supported PoE Power Supply 1/2(+),3/6(-) PoE Power Budget 96W Ethernet Port Light Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting Surge Protection Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2K Differential mode/Power board: 2KV Forwarding Mode Store-and-forward Power Source Input: 100-240V AC, 50/60Hz, Bult-in Power Supply Operating Temperature -10°C ~50°C Power Consumption <5W Feature Specification LEDs Indicator Light on: Power On Light off: No Power Storage Temperature -40°C ~70°C ESD Air discharge: 8KV Contact discharge: 6KV Humidity 10%-95% , non-condensing Dimensions 220 x 161 x 44 mm Color Black Weight 0.95 Kg (without packaging)
