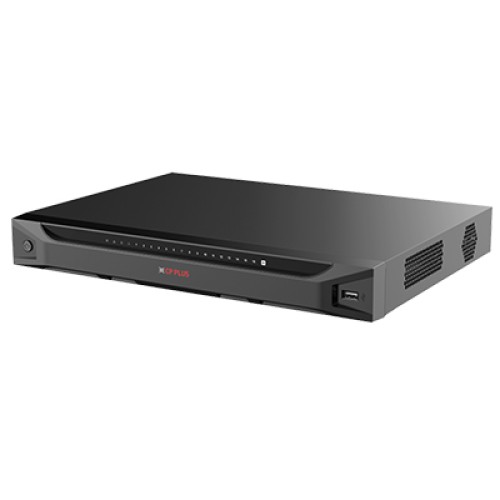

CP-UNR-4K5322-FI 32Ch. 4K AI Network Video Recorder
₹22,870.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| IP Camera Input | 32 channel |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| Video Output | 1-channel VGA, 1-channel HDMI video output. Heterogeneous video source output for HDMI and VGA Supports 4K display |
| Compression | H.265; Smart H.264+; H.264; MJPEG |
| Encode Strategy | Instastream |
| Decoding Capability | AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5- channel 12 MP@30fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30fps AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30fps |
| AI by NVR | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Video Display Split | Main screen: 1/4/8/9/16/25/36; Sub screen: 1/4/8/9/16 |
| Perimeter Performance AI by NVR (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by NVR (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by NVR (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera | 16 channels |
| SMD Plus by NVR | 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allow list |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cyber security exception |
| General Alarm | Motion detection; privacy masking; local alarm |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Disk Group | Support |
| Alarm Input | 4 channel |
| Alarm Output | 2 channel |
| Hard Disk | 2 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Browser | Chrome, IE9 or later, Firefox |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Smart Phone | iPhone, iPad, Android Phone |
| Backup Mode | USB Device/Network |
| Interface Ports | 2 USB Ports (1 Rear USB 3.0, 1 Front USB 2.0), 1 RS232, 1 RS485 |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search, Multicast; InstaOn cloud; Auto Registration; ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
| Ethernet | 1 x (10/100/1000 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 4Amp |
| Power Consumption | ? 10 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH) |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Dimensions | 375.0 mm × 284.4 mm x 56.0mm (14.76 |
| Weight | 1.57kg (without HDD) |
