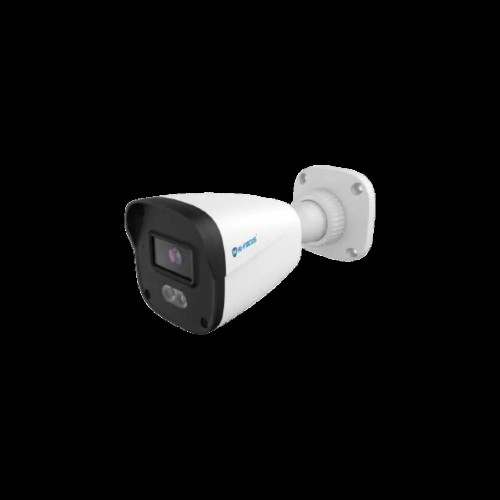

HC-IPC-T4212-0600

???? 3MP IP Camera (3.6mm Lens) – Key Specifications

???? Camera

Sensor: 1/3" CMOS

Max Resolution: 3MP (2304 × 1296)

Lens: 3.6mm @ F2.0 (69° horizontal view)

Minimum Illumination: 0.02 Lux (Color), 0 Lux with IR/White Light ON

Shutter Speed: 1/3s ~ 1/100000s

Day/Night: ICR (True Day & Night)

WDR: Digital WDR

Supported: BLC, HLC, Defog, Digital NR

S/N Ratio: ?50 dB

Angle Adjustment: Pan 0–360°, Tilt 0–80°, Rotate 0–360°

???? Video

Compression: H.265+ / H.265 / H.264+ / H.264 (Main & Sub Stream)

Frame Rate: Up to 30fps @ 3MP / 1080P / 720P

Bit Rate: 32 Kbps – 4 Mbps (CBR / VBR)

Audio: Built-in MIC (G711A/U)

Image Controls: Brightness, Contrast, Saturation, Sharpness, ROI, Flip/Mirror, etc.

???? Network & Interface

Ethernet: RJ45 (10/100 Mbps)

Protocols: IPv4/IPv6, RTSP, RTMP, NTP, DHCP, DDNS, P2P, HTTP, QoS, 802.1x

ONVIF Supported

API & SDK Supported

Remote Viewing: Web / NVR / NVMS / Mobile App

Multi-User Access: Up to 3 users simultaneously

???? Smart Functions

Smart Motion Detection (Human filtering)

Smart Events: Line Crossing & Region Intrusion (People Detection)

White Light Alarm on Smart Events / Network Issues

Security: Video & firmware encryption, illegal login lock, IP filtering

???? Night Vision

IR Range: 20–30 meters

White Light Range: 10–20 meters

? Power & Build

Power: PoE (IEEE 802.3af)

Power Consumption: < 5.5W

Protection: IP67 Outdoor Waterproof

Operating Temp: –20°C to +55°C

Dimensions: 162.1 × 74.8 × 73.8 mm

Weight: Approx. 0.25 kg
