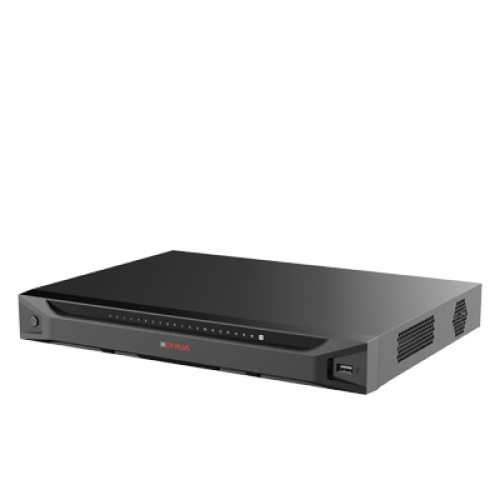

CP-UNR-4K2162-V3 16Ch. 4K Network Video Recorder

System

Processor: Industrial-grade processor

Operating System: Embedded Linux

IP Camera Input: 16 channels

User Interface: Web, Local GUI

???? AI Features

AI by Recorder: SMD

AI by Camera: Perimeter Protection, SMD

Perimeter Performance (by Camera): All channels (4 targets/sec)

SMD Plus by NVR:

4 channels with human & motor vehicle filtering (reduces false alarms from rain, leaves, lighting changes)

SMD Plus by Camera: All channels (8 targets/sec)

???? Video

Video Output:

HDMI: 3840×2160 / 1920×1080 / 1280×1024 / 1280×720

VGA: 1920×1080 / 1280×1024 / 1280×720

Video Compression: H.265 / H.264+ / H.264 / MJPEG

Encode Strategy: Instastream

Decoding Capability

AI Disabled:

1 ch 12MP@30fps

1 ch 8MP@30fps

2 ch 6MP@30fps

2 ch 5MP@30fps

3 ch 4MP@30fps

6 ch 1080p@30fps

AI Enabled:

1 ch 8MP@30fps

1 ch 6MP@30fps

1 ch 5MP@30fps

2 ch 4MP@30fps

4 ch 1080p@30fps

Supported Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 2MP / 960p / 720p / D1 / CIF / QCIF

Display Split: 1 / 4 / 8 / 9 / 16

???? Network

Bandwidth:

AI Disabled: 144 Mbps incoming / 144 Mbps recording / 72 Mbps outgoing

AI Enabled: 72 Mbps incoming / 72 Mbps recording / 36 Mbps outgoing

Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto Registration, ONVIF 23.12 (Profile T/S/G), CGI, SDK

???? Alarm

Abnormality Alarm: No disk, Disk error, Low space, Network disconnect, IP/MAC conflict, Video loss, Tampering, Camera offline

Intelligent Alarm: Perimeter Protection, SMD+

General Alarm: Motion detection, External camera alarm, PIR

Alarm Linkage: Recording, Snapshot, Buzzer, Log, Preset, Email, Tour

???? Audio

Input: 1 RCA

Output: 1 RCA

Compression: G.711a / G.711u / PCM / G726 / AAC

???? Storage

HDD: 2 SATA ports, up to 20 TB per disk (environment dependent)

Multi-Channel Playback: Up to 16 channels

? Recording & Playback

Record Mode: General, Motion, Intelligent, Alarm

Playback Mode: Instant, General, Event, Tag, Smart

???? Interfaces

USB: 2 ports (1 front + 1 rear, USB 2.0)

Ethernet: 1 × RJ-45 (10/100/1000 Mbps)

Backup: USB device, Network

Browser Support: Chrome, IE, Safari, Edge, Firefox

Mobile App: iOS, Android

? Power & Environment

Power Supply: 12 VDC, 4A

Consumption: ?10 W (without HDD)

Operating Temp: –10 °C to +55 °C

Operating Humidity: 10%–93% RH (non-condensing)

Storage Temp: –20 °C to +60 °C

???? Physical

Dimensions: 375 × 282.9 × 53 mm

Weight: 1490 g (without HDD)
