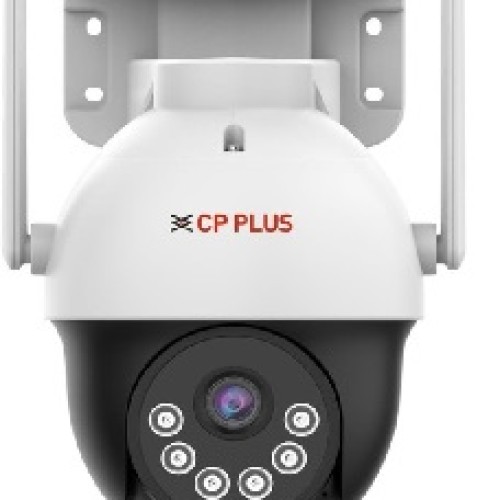

EZ-S35T CP PLUS 3MP EZY 4G MINI PT CAMERA

EZ-S35T Camera Specifications

Camera & Video

Image Sensor: 1/3” 3MP CMOS Image Sensor (0.84667 cm)

Maximum Resolution: 3MP (2304 × 1296)

Frame Rate: 15 fps

Video Compression: H.265

S/N Ratio: ? 36 dB

Electronic Shutter: 1/50s (1/60s) – 1/100,000s

Lens

Lens Type: Fixed

Focal Length: 4 mm

Maximum Aperture: F2.0

Angle of View:

Diagonal: 102.6°

Horizontal: 86.2°

Vertical: 46.1°

Low Light & Image Enhancement

Minimum Illumination:

Color: 0.1 Lux

B/W: 0.01 Lux

Back Light Compensation: DWDR

Noise Reduction: 2D DNR

Picture Adjustment: Auto-adjust Contrast, Brightness, Saturation

Exposure Control: Auto AWB, AGC, BLC

Day/Night Mode: Auto / IR / Color

IR Cut Filter: Auto

Night Vision

IR LEDs: 6 pcs

IR Distance: 20–30 meters

White LEDs: 6 pcs

White LED Distance: 15–20 meters

Smart Features

Motion Detection: Supported

Motion Tracking: Supported

Human Body Detection: Supported

Alarm Notification: Push Notification Supported

Built-in Siren: Supported

Echo Cancellation: Supported

Audio

Audio Compression: G.711A, AAC

Built-in Microphone: Yes

Built-in Speaker: Yes

Two-Way Talk: Supported

Connectivity

4G Standard: LTE-TDD / LTE-FDD

4G Frequency Bands:

FDD-LTE: B1 / B3 / B5 / B8

TDD-LTE: B34 / B38 / B39 / B40 / B41

Google Home: Supported

Mobile App: Android & iOS

Pan / Tilt

Pan Angle: 266°

Tilt Angle: 90°

Storage

Storage Type: Micro SD Card

Max Capacity: Up to 256 GB

Power & Environment

Power Supply: DC 12V, 1A

Power Consumption: ? 12W

Application Environment: Outdoor

Weatherproof Rating: IP66

Operating Temperature: -20°C to 50°C

Operating Humidity: < 95% (No Condensation)

Physical

Material: PC + ABS Plastic

Dimensions: 165 × 132.8 × 191.5 mm

Weight: 850 g
