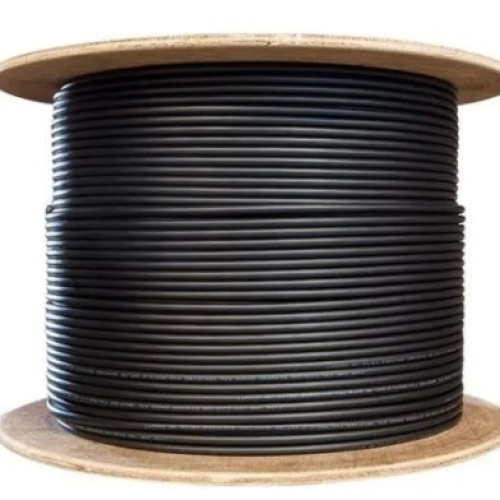

NCB C6UBLKR-305-O CAT 6 UTP OUTDOOR CABLE

Electrical Parameters •CONDUCTOR RESISTANCE (DC): 9.38 ? /100MTR@20?C. MAX. • RESISTANCE UNBALANCE: 4 %MAX • DIELECTRIC STRENGTH: 1.7 KV AC for 2S • INSULATION RESISTANCE: 5000 M? /km • MUTUAL CAPACITANCE: 5.6 nF/100 mtrs MAX. • CAPACITANCE UNBALANCE PAIR/GROUND: 330 pF/100M MAX •PROPAGATION DELAY: 536 nS/100m max @ 250 MHz • DELAY SKEW: ?45 nS/100M • NORMAL VELOCITY OF PROPAGATION: 69% • TENSILE STRENGTH: >9MPa, (9000KN/Square Meter) • IMPEDANCE: 100 ± 15% ? Construction: Conductor Solid Bare Electrolytic Grade Copper Nominal Conductor Diameter (23 AWG) Insulation Polyethylene Insulation Diameter 0.973 ± 0.05 mm Insulation Thickness 0.217mm Sheath Thickness 0.5 ± 0.15 mm Outer Jacket: UV-PE Color of Jacket Blue Sequential Marking At Every Meter Filler Yes. Central Slit Film Cross Filler Approximate OD 7.1 mm Flame Test • NEC article 800 Material and Construction • UL 444 Applicable Standard • ANSI/TIA-568-C.2 (2009) • ISO/IEC 11801 (Edition 2.2) • IEC 61156-5 (Edition2.0) • IEC 60332-1-2 • EN50288-6-1 & EN50173-1

HIGH FREQUENCY PARAMETER FREQ Ins. Loss RL NEXT ELFEXT PSNEXT PSELFEXT (MHz) (dB/100) (dB) (dB/100) (dB/100) (dB/100) (dB/100) Max. Min Min. Min. Min. Min. 1 2.1 20 75 68 72.3 65 4 3.8 23 66.3 56 63.3 53 10 6 25 60.3 48 57.3 45 16 7.6 25 57.2 43.9 54.2 40.9 20 8.5 25 55.8 42 52.8 39 31.25 10.7 23.6 52.9 38.1 49.9 35.1 62.5 15.5 21.5 48.4 32.1 45.4 29.1 100 19.9 20.1 45.3 28 42.3 25 200 29.1 18 40.8 22 37.8 19 250 33 17.3 39.3 20 36.3 17 MECHANICAL PROPERTIES • BEND RADIUS: 8 X CABLE DIAMETER • TENSILE STRENGTH: >9MPa, (9000KN/Square Meter) • STORAGE TEMPERATURE: -20?C to 60?C • OPERATING TEMPERATURE: -20?C to 60?C PACKAGING - 305M – Reel
