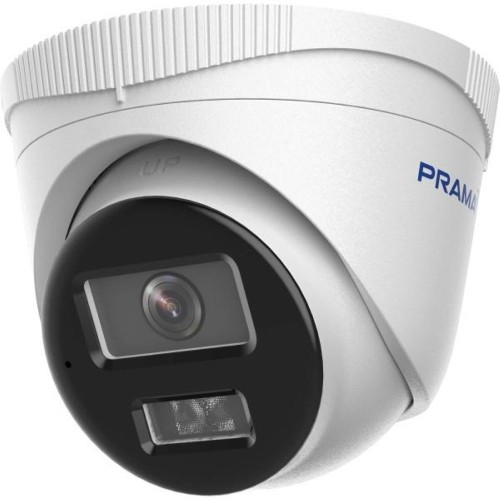

PT-NC143D3-N 4 MP Fixed Turret Network Camera

Image & Sensor

Image Sensor: 1/3 inch Progressive Scan CMOS

Max Resolution: 2560 × 1440 (4MP)

Min. Illumination:

Color: 0.005 Lux @ (F1.6, AGC ON)

B/W: 0 Lux with IR

Shutter Time: 1/3 s to 1/100,000 s

Day/Night: IR cut filter

WDR: 120 dB

SNR: ? 52 dB

???? Lens & Angle

Lens Type: Fixed

Lens Options: 2.8 mm / 4 mm (optional)

Aperture: F1.6

Mount: M12

Field of View (FOV):

2.8 mm:

Horizontal: 98°

Vertical: 54°

Diagonal: 114°

4 mm:

Horizontal: 78°

Vertical: 42°

Diagonal: 93°

Angle Adjustment

Pan: 0° to 360°

Tilt: 0° to 75°

Rotate: 0° to 360°

???? DORI (Detection / Observe / Recognize / Identify)

2.8 mm Lens

Detect: 63 m

Observe: 25 m

Recognize: 12 m

Identify: 6 m

4 mm Lens

Detect: 78 m

Observe: 31 m

Recognize: 15 m

Identify: 7 m

???? IR & Night Vision

Supplement Light: IR

Range: Up to 30 m

Smart IR: Yes

IR Wavelength: 850 nm

????? Video

Main Stream

2560×1440 @ 20 fps

1080p/720p @ 25/24 fps (depending on 50/60Hz)

Sub Stream

Up to 1280×720 @ 25/24 fps

Video Compression

Main: H.265+/H.265/H.264+/H.264

Sub: H.265/H.264/MJPEG

Bitrate: 32 Kbps – 8 Mbps

Profiles:

H.264: Baseline/Main/High

H.265: Main

ROI: 1 region

???? Audio

Type: Mono

Noise Filtering: Yes

Sampling Rate: 8 kHz / 16 kHz

Compression: G.711u/a, G.722.1, G.726, MP2L2, PCM, AAC-LC

Bitrate: 16 Kbps – 160 Kbps

???? Network

Protocols: TCP/IP, DHCP, DNS, HTTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP

Users Supported: Up to 32

User Levels: Admin / Operator / User

Simultaneous Live View: Up to 6 channels

API: ONVIF (Profile S, T)

Security: Password protection, watermark, security audit log

????? Web Browser Support

Plug-in View: IE 10, IE 11

Local Service: Chrome 57+, Firefox 52+

????? Image Enhancements

BLC / HLC / 3D DNR

Adjustable settings: rotate mode, saturation, brightness, contrast, sharpness, gain, white balance

Privacy Mask: 4 polygon masks

???? Interface

Ethernet: 1 × RJ45 (10/100M self-adaptive)

???? Events & Alerts

Motion detection (human/vehicle filter)

Video tampering

Exceptions

Linkage: Email alerts, notify center, capture trigger

? Power

12V DC: 0.5 A (Max 6W) – with reverse polarity protection

PoE: IEEE 802.3af Class 3 (Max 7.2W)

???? Build & Dimensions

Material: Metal + Plastic

Dimensions: Ø112 mm × 82 mm

Weight: 340 g (560 g with package)

Package Size: 150 × 150 × 141 mm

????? Environment

Operating Temperature: -30°C to 60°C

Humidity: ? 95% (non-condensing)

Storage: Same as operating

Protection Rating: IP67
