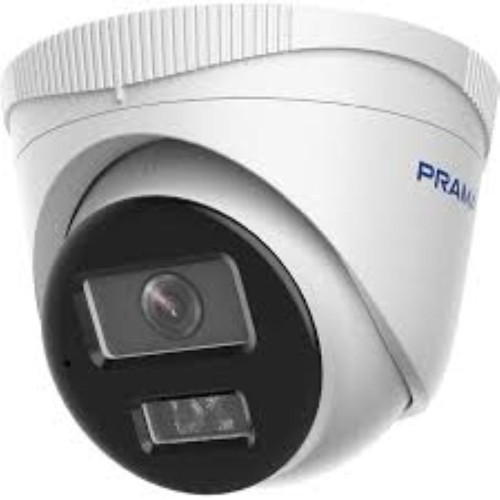

PT-NC163D3-WNM(D2) 6MP Rangin View Dome Network Camera (STQC APPROVED)

Camera

Image Sensor: 1/2.4" Progressive Scan CMOS

Max Resolution: 3200 × 1800

Shutter Time: 1/3 s to 1/100,000 s

Minimum Illumination:

Color: 0.005 Lux @ F1.6 (AGC ON)

B/W: 0 Lux with IR

Day/Night: IR cut filter

Angle Adjustment:

Pan: 0° to 360°

Tilt: 0° to 75°

Rotate: 0° to 360°

???? Lens

Lens Type: Fixed focal lens

Focal Length Options: 2.8 mm / 4 mm

FOV (2.8 mm):

Horizontal: 105°

Vertical: 55°

Diagonal: 127°

Aperture: F1.6

Lens Mount: M12

Iris: Fixed

???? DORI (2.8 mm)

Detect: 76 m

Observe: 30 m

Recognize: 15 m

Identify: 7 m

???? Illuminator

Light Type: IR + White Light

Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

???? Video

Main Stream (20 fps):

3200×1800

2688×1520

1920×1080

1280×720

Sub Stream (20 fps):

1280×720

640×480

640×360

Compression:

Main: H.265+/H.265/H.264+/H.264

Sub: H.265/H.264/MJPEG

Bitrate: 32 Kbps to 16 Mbps

H.264 Profiles: Baseline / Main / High

H.265 Profile: Main

Bitrate Control: CBR / VBR

ROI: 1 fixed region

???? Audio

Type: Mono

Noise Filtering: Yes

Sampling: 8 kHz / 16 kHz

Formats: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

Bitrate: 16 Kbps – 160 Kbps

???? Network

Security Features:

Password protection

Complex password support

Watermark

Digest authentication (HTTP, ONVIF)

Security audit log

Simultaneous Live View: Up to 6 channels

API: ONVIF Profile S, Profile T

Supported Protocols:
TCP/IP, ICMP, DHCP, DNS, HTTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP

Users Supported: Up to 32

Levels: Admin / Operator / User

Web Browser Support:

IE 10, IE 11 (plugin required)

Chrome 57+

Firefox 52+

????? Image Features

WDR: 120 dB

SNR: ? 52 dB

Day/Night Switch: Day / Night / Auto / Schedule

Image Enhancements: BLC, HLC, 3D DNR

Adjustable Settings: Brightness, Contrast, Sharpness, Saturation, Gain, White Balance, Rotate mode

Privacy Masks: 4 polygon masks

???? Interface

Ethernet Port: 1 × RJ45 (10/100M)

Built-in Microphone: Yes

???? Events

Motion Detection (human/vehicle filtering)

Video Tampering Alarm

Exception Alarm

Linkage:

Send Email

Notify Surveillance Center

Trigger Capture

?? General

Power:

12V DC ±25%, max 4.92W

PoE (802.3af), max 6.5W

Material: Metal & Plastic

Dimensions: Ø112 × 82 mm

Package Size: 150 × 150 × 141 mm

Weight: 340 g

Package Weight: 560 g

Storage Temp: -30°C to 60°C

Operating Temp: -30°C to 60°C

Humidity: ? 95% (non-condensing)

Functions:

Heartbeat

Anti-banding

Mirror

Password Protection

Password Reset via Email

Protection Rating: IP67
