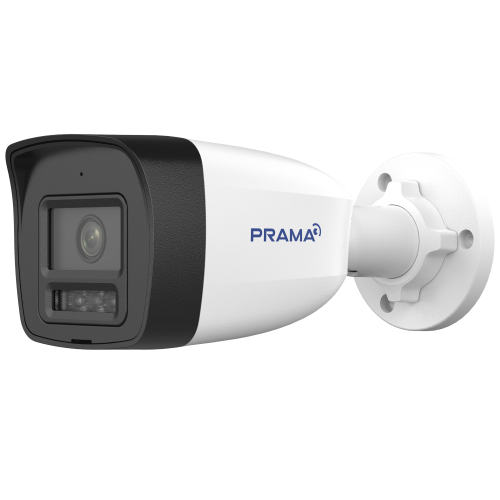

PT-NC160D3-WNM(D2) 6MP Rangin View Bullet Network Camera (STQC APPROVED)

Camera

Image Sensor: 1/2.4" Progressive Scan CMOS

Max Resolution: 3200 × 1800

Shutter Time: 1/3 s to 1/100,000 s

Minimum Illumination:

Color: 0.005 Lux @ F1.6 (AGC ON)

B/W: 0 Lux with IR

Day & Night: IR cut filter

Angle Adjustment:

Pan: 0° to 360°

Tilt: 0° to 90°

Rotate: 0° to 360°

???? Lens

Lens Type: Fixed focal

Focal Length: 4 mm

Field of View (FOV):

Horizontal: 78°

Vertical: 38°

Diagonal: 96°

Aperture: F1.6

Lens Mount: M12

Iris Type: Fixed

???? DORI (4 mm)

Detect: 115 m

Observe: 45 m

Recognize: 23 m

Identify: 11 m

???? Illuminator

Supplement Light: IR + White Light

Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

???? Video

Main Stream (20 fps):

3200×1800

2688×1520

1920×1080

1280×720

Sub Stream (20 fps):

1280×720

640×480

640×360

Video Compression:

H.265+ / H.265 / H.264+ / H.264

MJPEG (sub-stream)

Video Bitrate: 32 Kbps to 16 Mbps

H.264 Profiles: Baseline / Main / High

H.265 Profile: Main

Bitrate Control: CBR / VBR

Region of Interest (ROI): 1 fixed region

???? Audio

Audio Type: Mono sound

Environment Noise Filtering: Yes

Sampling Rate: 8 kHz / 16 kHz

Compression Formats:

G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

Audio Bitrate Range: 16 Kbps – 160 Kbps

???? Network

Security Features:

Password protection

Strong password support

Watermark

Digest authentication

Security audit log

Simultaneous Live View: Up to 6 channels

API: ONVIF Profile S, T

Protocols Supported:
TCP/IP, ICMP, DHCP, DNS, HTTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP

Users: Up to 32 users

Levels: Administrator, Operator, User

Supported Browsers:

IE 10/11 (plugin)

Chrome 57+

Firefox 52+

Edge 89+

????? Image Features

WDR: 120 dB

SNR: ? 52 dB

Day/Night Switch: Day / Night / Auto / Schedule

Image Enhancement: BLC, HLC, 3D DNR

Adjustable Image Settings:
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance

Privacy Mask: 4 programmable polygon masks

???? Interface

Ethernet: 1 × RJ45 (10/100M)

Built-in Microphone: Yes

???? Events

Motion Detection (human/vehicle filter)

Video Tampering Alarm

Exception Alarm

Linkage Actions:

Send email

Notify surveillance center

Trigger snapshot

?? General

Power:

12V DC ±25%, max 4.92W

PoE (802.3af), max 6.5W

Material: Metal & Plastic

Dimensions: 185.8 × 66 × 69.1 mm

Package Size: 216 × 121 × 118 mm

Weight: 285 g

Weight with Package: 481 g

Storage Temperature: -30°C to 60°C

Operating Temperature: -30°C to 60°C

Humidity: 95% or less (non-condensing)

General Functions:

Heartbeat

Anti-banding

Mirror

Password protection

Password reset via email

Protection Level: IP67
