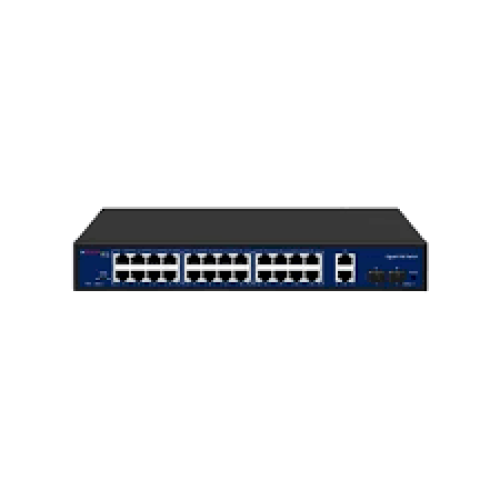

CP-DNW-GPU24G2F2-30 28 Ports Switch with 24 Gigabit PoE Ports & 2 Gigabit Uplink Ports + 2 SFP Ports

Feature Specification Uplink Ports 2 Uplink Port, 1000Mbps RJ45 ports & 2 Gigabit SFP ports Switching Capacity 56Gbps Full duplex Packet Forwarding Rate 41.664Mpps PoE Ports 24, 10/100/1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port MAC Address List 8K Transmission Distance 0-100m/1000Mbps or Port 17-24 Max. 250m/10Mbps via Cat.5e or more under Extend mode PoE Feature All ports support MDI/MDIX PoE Standard IEEE802.3af, IEEE802.3at Packet Buffer 3Mb PoE watchdog Support PWR (Power Indicator) Light on: Powering, Light off: No Power Mode Indicator Light off: Normal mode, Flash: Extend mode 1-28 Indicator (Link & Data) Green light off: Link is disconnected, Green light on: Link is connected, Green light flash: Data Transmitting 1-24 Indicator (PoE) Yellow light off: PoE not powering, Yellow light on: PoE powering PoE Max Indicator Light off: Indicates PoE power usage is less than 90%, Light flash: Indicates PoE power usage 90%?P?95%, Light on: Indicates PoE power usage 95%
