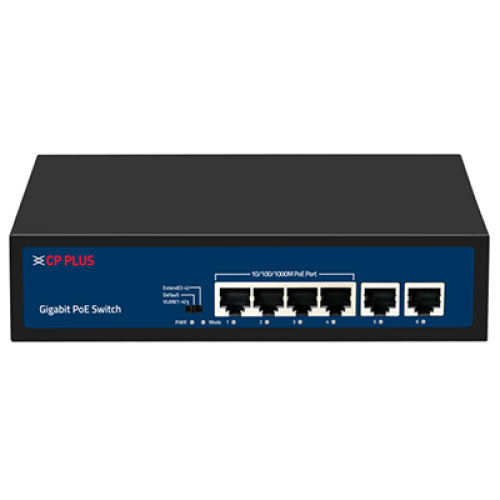

CP-DNW-GPU4G2-48C 4x Gigabit PoE with 2x Gigabit Uplink, Unmanaged

Feature Specification Uplink Ports 2, 1000Mbps, Transmission Distance: Default: 0-100m Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x Switch Capacity 12 Gbps Full duplex Packet Forwarding Rate 1.488 Mpps/port PoE Ports 4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~100m or 0~250m selected by switch Power Indicator Light on: Powering Light off: No Power Network Ports 6 Ports Transmission Distance 0-100m/1000Mbps or Port 3-4 Max. 250m/10Mbps via Cat.5e or more under Extend mode PoE Standard IEEE802.3af, IEEE802.3at Watchdog Support PoE Power Supply 1/2(+), 3/6(-) PoE Power Budget 48W VLAN Support Surge Protection Common mode/RJ45 port: 6KV, Differential mode/RJ45 port: 2KV, Common mode/ Power board: 6KV, Differential mode/Power board: 1KV Forwarding Mode Store-and-forward MAC Address Table 2K DIP switch indicator Green light off: Normal/Default mode, Green light on: VLAN mode, Green light flash: Extend mode ESD Air discharge: 8KV, Contact discharge: 6KV *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification RJ-45 ACT indicator Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting PoE Feature All ports support MDI/MDIX Power Source Input: 100-240V AC, 50/60Hz Power Consumption <5W Operating Temperature -10°C ~50°C Operating Humidity 10%-95%, Non-condensing Storage Temperature -40°C~70°C Dimensions (L x W x H) 200 mm x 118 mm x 44 mm Weight 600 g
