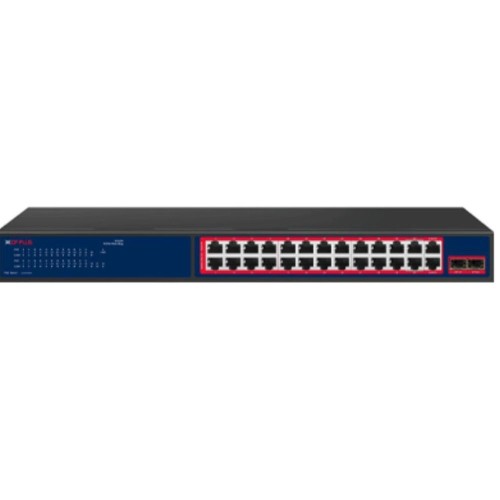

CP-ANW-HPU24G2F2-N30 24 Port PoE + 2 Gigabit Port + 2 SFP Port AI PoE Switch

Feature Specification Network Standard IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, I EEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet Network Ports PoE (1~22):10/100Mbps PoE ports (RJ45) PoE (23~24):10/100Mbps PoE ports,Support bt 60W High Power LAN(25~26):10/100/1000Mbps uplink ports (RJ45) SFP(27~28):10/100/1000Mbps SFP port Bandwidth 12.8Gbps MAC Address List 8K Transmission Distance 100Mbps /10Mbps ,Auto-Adaption 250Mtr Transmission Rate 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex AI Watchdog Port 1~24 The Frame Filter & Transmission Rate 14800pps the most for 10M port, 148800pps the most for 100M port;1488000pps the most for 1000M port Network Latency (10 to 1000Mbps): ?16?s (use the 64byte package size) ESD Protection 8KV, Per: IEC61000-4-2 Lightning Protection 6KV, Per: IEC61000-4-5 Operating Temperature -30°C~60°C Storage Temperature -40°C~70°C *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Storage Humidity 5%~90% Non-condensing Operating Humidity 10%~90% Non-condensing Power Input AC 90~240V Total?300W Power Output PoE1~22 Port:1/2(+52V),3/6(GND)?30W PoE23~24 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)?60W Package Content AC Power Cable, User Manual Dimensions 430mm(L) x 180mm(W) x 45mm(H) Weight 2.65KG
