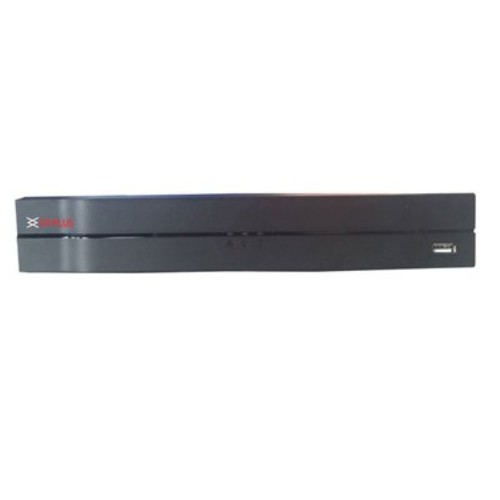

CP-UVR-0401L1-4KH 4 Ch. 4K H.265 Cosmic HD DVR

Feature Specification Processor Embedded processor Operating System Embedded LINUX IP Camera Input 4+2 Ch : each channel up to 8MP Two-way Talk Reuse audio in/out, RCA User Interface GUI Video Input 4 channel, BNC Video Output 1 HDMI, 1 VGA Compression H.265+/H.265/H.264+/H.264 Video Resolution HDMI: 3840x2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF Video Recording Main stream: 1st Ch. 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps) Sub stream: 960H(1~15fps); D1/CIF(1~25/30fps) Video Display Split 1/4 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Bit Rate 32Kbps ~ 6144Kbps Per Channel Audio Input 1 channel, RCA Audio Output 1 channel, RCA Motion Detection Support Video Loss Support Audio Compression AAC (only for the 1st Channel), G.711A, G.711U, PCM Camera Blank Support Smart Phone iPhone, iPad, Android Phone Hard Disk 1 SATA port, up to 10TB Audio Sample Rate 8KHz, 16 bit Per Channel Audio Bit Rate 64Kbps Per Channel *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Playback 1/4 Ch. Alarm Input N/A Alarm Output N/A Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Search Mode Time/Date, Alarm, MD & Exact search (accurate to second) Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom Backup Mode USB Device/Network Interface Ports 2 USB Ports (2.0), 1 RS485 Port Max User Account 128 users Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Ethernet RJ-45 port (100M) Protocols HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant Power Supply DC12V/2A Power Consumption <10W(without HDD) Working Temp -10°C ~ +55°C (+14°F ~ +131°F), 10 ~ 90% RH Dimensions 260mm x 236mm x 48mm Weight 0.9kg (without HDD)
