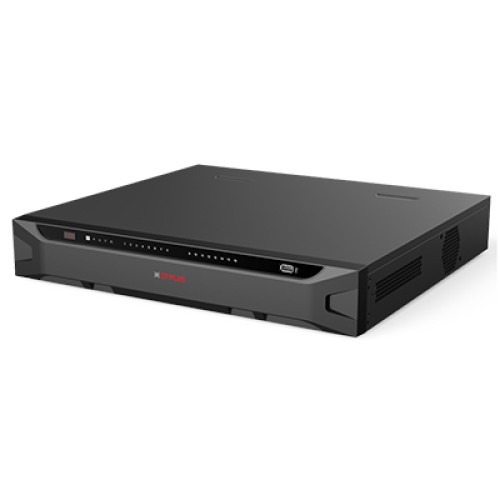

CP-UNR-4K5324-FI 32Ch. 4K AI Network Video Recorder
₹33,748.00
(Inclusive of all taxes)
(Inclusive of all taxes)
| Processor | Industrial-grade processor |
| IP Camera Input | 32 Channel |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| Video Output | 2 VGA:1920 × 1080, 1280 × 1024, 1280 × 720 2 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Video Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| Decoding Capability | AI disabled: 2 Channel 32 MP@25 fps, 2 Channel 24 MP@25 fps, 4 Channel 16 MP@30 fps, 5 Channel 12 MP@30 fps, 8 Channel 8 MP@30 fps, 10 Channel 6 MP@30 fps, 12 Channel 5 MP@30 fps, 16 Channel 4 MP@30 fps, 32 Channel 1080p@30 fps AI enabled: 1 Channel 32 MP@25 fps; 1 Channel 24 MP@25 fps; 2 Channel 16 MP@30 fps, 4 Channel 12 MP@30 fps, 6 Channel 8 MP@30 fps, 8 Channel 6 MP@30 fps, 8 Channel 5 MP@30 fps, 12 Channel 4 MP@30 fps, 24 Channel 1080p@30 fps |
| AI by NVR | Face detection, Face recognition, Perimeter protection, SMD Plus |
| AI by Camera | Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| IntelliCheck AI by Camera + Recorder | Max. 32 Channel, 1 combined event per Channel/s |
| Resolution | 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 2 MP, 720p, 960p, D1, CIF, QCIF |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Video Display Split | Main screen: 1/4/8/9/16/25/36, Sub screen: 1/4/8/9/16 |
| Perimeter Performance AI by NVR (Number of Channels) | 4 Channels, 10 IVS rules for each Channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All Channels (16 targets/s) |
| Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 Channels (up to 12 face images/s each Channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 Channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image |
| Face Recognition Performance of AI by NVR (Number of Channels) | 1. 16 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s 2. 2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 Channels |
| SMD Plus by NVR | 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All Channels (32 targets/s) |
| Metadata Performance of AI by Camera (Number of Channels) | 8 Channels |
| Human Attributes | Top color, Top type, Bottom color, Bottom type, Hat, Bag, age, Gender and Umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, Vehicle color, Number of persons, Helmet |
| ANPR by Camera (Number of Channels) | All Channels (8 Targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers, 2. Blocklist and allowlist |
| Abnormality Alarm | Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behavior of fan, Cyber security exception |
| Intelligent Alarm | Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| General Alarm | Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm |
| Alarm Linkage | Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Ema |
| Audio Input | 1 Channel RCA |
| Audio Output | 2 Channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Disk Group | Support |
| Alarm Input | 16 Channel |
| Alarm Output | 6 Channels (1 Channel 12 V 1 A output) |
| Hard Disk | 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature |
| Multi-channel Playback | Up to 16 Channels |
| Record Mode | General, Motion detection, Intelligent, Alarm, POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection |
| Interface Ports | 3(1 front USB 2.0 port, 2 rear USB 3.0 ports), 1 RS232, 1 eSATA Port, 1 RS485 (half-duplex serial communication) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12(Profile T, Profile S, Profile G), CGI, SDK |
| Network Mode | Multi-address mode, Load balance, Fault tolerance and other network port binding modes |
| Smart Phone | iPhone, iPad, Android Phone |
| Ethernet | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output of NVR is ? 13 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Dimensions | 440.0 mm × 415.1 mm x 70.0 mm |
| Weight | 4.74 kg (without HDD) |
