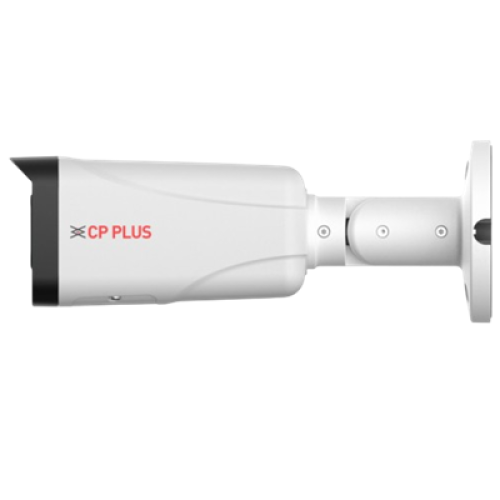

CP-UNC-TC81L5C-VMD-LQ 8MP Dual Light Bullet Camera - 50Mtr.

Name: eTransit Security Systems
Address: G10 SNS Interio, Nr. CNG Gas Station Althan Road, Bhatar Char Rasta, Althan, Surat 395007. Gujarat (India, SURAT, 395007, IN
Telephone: +91 9723544444

₹10,384.00

(Inclusive of all taxes)

Installation Required ₹300.00

1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@1–20 fps Instastream, H.265, H.264,H.264H, H.264B, MJPEG Support Quad Stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50

SKU: CP-UNC-TC81L5C-VMD-LQ

By Ordering this product you are bound to Accept our Terms & Condition

Add to Cart

Warranty : 2 year

Description

Image Sensor	1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters)
Effective Pixels	3840 (H) × 2160 (V)
Minimum Illumination	0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM	256 MB
ROM	256 MB
DORI Distance	Lens 3.6 mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) Lens 6 mm: 154.7 m (Detect), 61.9 m (Observe), 30.9 m (Recognize), ) 15.5 m (Identify)
Gain Control(AGC)	Auto/ Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Close Focus Distance	3.6 mm: 1.9 m, 6 mm: 3.5
Smart IR	Support
IR Number	2 IR LED, 2 Warm Light
IR	IR Range of 50 Mtr.
Warm Light	Warm Light Range of 30 Mtr.
IR Control	Auto, Manual
Lens	3.6mm Lens (6mm Optional)
Lens Mount	M12
S/N Ratio	>54 dB
Back Light Compensation	BLC/ HLC/ WDR(120dB)
Angle of view	3.6 mm: H: 87°, V: 49°, D: 100°; 6 mm: H: 55°, V: 31°, D: 62°
Day/Night	Auto(ICR)/Color/B/W
Stream Capability	Quad Stream
Frame Rate	Main stream: 8MP (3840 × 2160)@1–20 fps/ 4MP (2688 × 1520)@1–25/30 fps Sub stream 1: D1@(1–25/30 fps) Sub stream 2:D1@(1–25/30 fps) Sub stream 3:D1@1fps
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream)
IVS (Perimeter Protection)	Intrusion, Tripwire (the two functions support the classification and accurate detection of vehicle and human)
Video Format	PAL/NTSC
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Resolution	8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4.5MP (2880 × 1620), 4MP (2688 × 1520), 3MP (2048 × 1536), (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 ×480), VGA (640 ×480), CIF (352 × 288/352 × 240)
Noise Reduction	3D NR
ROI	Support (4 areas)
Mirror Function	Support
OSD	Camera title, Date & Time
Bit Rate	H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps
Bit Rate Control	CBR/ VBR
Protocol	FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Ethernet	RJ-45 (10/100 Base-T)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
SMD	Support
Audio Compression	G.711a, G.711Mu, G.726, PCM, AAC
Audio Output	1 Channel (RCA port)
Alarm IN	1 Channel in: 5 mA 3–5 VDC
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
SDK and API	Support
Alarm Event	No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, SMD, Security exception, External alarm
Browser	IE: IE11, Chrome, Firefox
Storage	SFTP, NAS, Mirco SD card (Max. 512GB)
Certificates	ISO9001, CE, FCC and RoHS
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.6 W (12 VDC), 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + illuminator intensity + IVS): 7 W (12 VDC), 8.3 W (PoE)
Weatherproof Standard	IP67, IK10 (optional)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	?95% (RH), non-condensing
Dimensions	238.5 mm × 90.7 mm × 90.7 mm
Weight	720g
