CP-EUT-6TGD23-305 Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket)

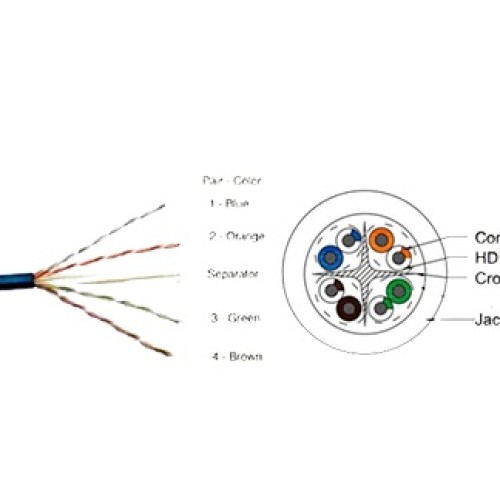

Feature Specification Conduct Type Solid Bare Electrolytic Grade Copper Nominal Conductor Diameter 24 AWG (0.48mm ± 0.020mm) Insulation Polyethylene (HDPE) Separator Each pair separated with a cross separator Pairing 2 insulated conductors twisted together Inner Jacket PVC Outer Jacket PE Colour of Jacket Black Approximate OD 5.8mm ± 0.1mm Thickness of Outer Jacket 0.55mm ± .05mm Thickness of Inner Jacket 0.45mm ± .05mm Impedance 100±15% ? Rip Cord No Sequential Marking Every Meter Characteristic Impedance 100 ±15? Nominal Velocity of Propagation 69% Resistance Unbalance 5% Max Conductor Resistance ?9.38/100m Resistance Unbalance 5% Max Capacitance Unbalance 330pF/100m Bending Radius < 8 x Cable Diameter at -20° ±1°C *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Company Name: CP PLUS (Aditya Infotech Ltd.) F-28 Okhla Industrial Area, Phase 1, New Delhi 110020, INDIA Contact Mail ID :- [email protected] Delay Skew <45nS Mutual Capacitance <5.6nf/100m Packing 305 Mtrs Temperature Rating -15 to 60°C Storage Temperature -15 to 60°C Pulling Force 11.5Kg
