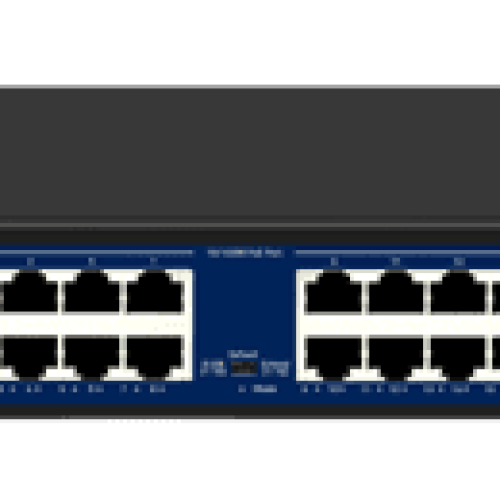

CP-DNW-HPU16G2F1-20 19 Ports Switch with 16 PoE Ports & 2 Gigabit + 1 SFP Port

Feature Specification Uplink Ports 2 Ports 1000Mbps RJ45 uplink ports + 1 Port 1000Mbps SFP port Network Standard IEEE802.3/802.3u/802.3ab/802.3z/802.3x Switch Capacity 9.2 Gbps Full duplex Packet Forwarding Rate 6.844Mpps PoE Ports 16, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Network Ports 19 Transmission Distance 0-100Mtr./1000Mbps or Max. 250Mtr./10Mbps via Cat.5e or more under Extend mode MAC Address List 2K PoE Standard IEEE802.3af, IEEE802.3at Packet Buffer 1.5Mb PoE watchdog Support Switch Mode (SW) Green light off: Normal/Default mode, Green light on: VLAN mode, Green ligh flash: Extend mode ESD Protection Air discharge: 8KV, Contact discharge: 6KV Surge Protection Common mode/RJ45 port:4KV ,Differential mode/RJ45 port: 2KV, Common mode/Power board: 4KV, Differential mode/Power board: 2KV VLAN Support Forwarding Mode Store-and-forward PoE Feature All ports support MDI/MDIX PWR (Power supply Indicator) Light on: Powering ;Light off: No Power RJ-45 ACT indicator Green light off: Link is disconnected, Green light on: Link is connected , Green light flash: Data Transmitting Operating Temperature -10°C~-50°C Operating Humidity 10%-95% , non-condensing Storage Temperature -40°C~70°C *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification PoE Power Supply 1/2(+),3/6(-) Power Source Bult-in Power Supply, Input: 100-240V AC, 50/60Hz PoE Power Budget 200W Power Consumption <5W Dimensions 320mm x 207mm x 45mm Weight 1.71kg?not include input cable & packaging?
