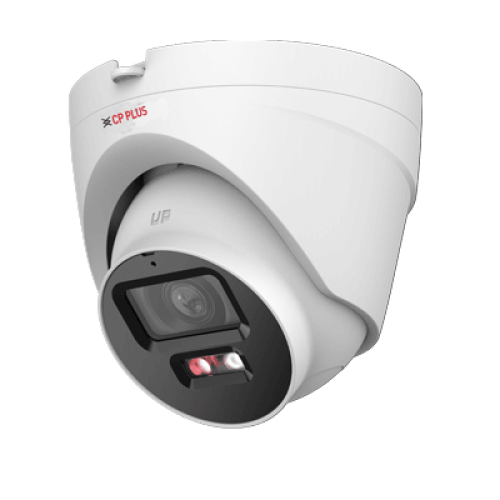

CP-UNC-DA41L3B-D-LQ 4MP Dual Light Dome Camera - 30Mtr.(STQC APPROVED)

Feature Specification Image Sensor 1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters) Effective Pixels 2688 (H) × 1520 (V) Minimum Illumination 0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Shutter Speed Auto/Manual 1/3 s–1/100,000 s RAM 128 MB White Balance Auto, Natural, Street lamp, Outdoor, Manual, Regional custom ROM 128 MB Gain Control(AGC) Auto/Manual Lens Type Fixed-focal Max. Aperture F1.4 Lens Mount M12 Close Focus Distance 3.6 mm: 1.5 m DORI Distance Lens 3.6mm: 78.0 m (Detect), 31.2 m (Observe), 15.6 m (Recognize), 7.8 m (Identify) Lens 3.6mm fixed Lens S/N Ratio >58dB Back Light Compensation BLC/ HLC/ WDR(120dB) Video Compression Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Day/Night Auto(ICR)/Color/B/W Angle of View 3.6 mm: H: 78°, V: 42°, D: 92° IR Number 1 IR LED, 1 Warm light IR IR Range of 30 Mtr. Warm Light Warm Light Range of 30 Mtr. Smart Illumination Support *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification Smart search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Resolution 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Noise Reduction 3D NR Motion detection OFF/ON (4 areas, rectangular) Privacy Mask 4 areas Stream Capability Triple stream Frame Rate Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Video format PAL/NTSC ROI Support (4 areas) Audio Built-in Mic Built-in Speaker Support Audio Compression G.711a, G.711Mu, PCM, G.726, AAC OSD Camera title, Date & Time Bit Rate Control CBR/VBR Bit Rate H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps SDK and API Support User/Host 6 (Total bandwidth: 36 M) SMD Support the classification and accurate detection of human and vehicle Mirror Function Support Alarm Event Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception IR Control Auto, Manual Browser IE, Chrome, Firefox Smart IR Support *Product casing and specifications are subject to change without prior notice THINK CP PLUS THINK SECURITY Feature Specification Protocol SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Ethernet RJ-45 (10/100 Base-T) Certificates ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Image Rotation 4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° Cyber Security AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Iris Control Fixed Power Source 12 VDC/PoE (802.3af) Power Consumption Basic: 1.8 W (12 VDC); 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) Weatherproof Standard IP67 Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ?95% (RH), non-condensing Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity ?95%(RH), non-condensing Casing Metal + Plastic Dimension 100.9 mm × 109.9 mm Weight 320g
